Запчасти Case IH PUMA 165 CVT (50.104.AO[02]) - VAR - 391176, 758255, 758256, 758257, 758258, 758259, 758260, 758261, 758262, 758263, 758264, 758265 - AIR CONDITIONER, AIR DUCT (50) - CAB CLIMATE CONTROL

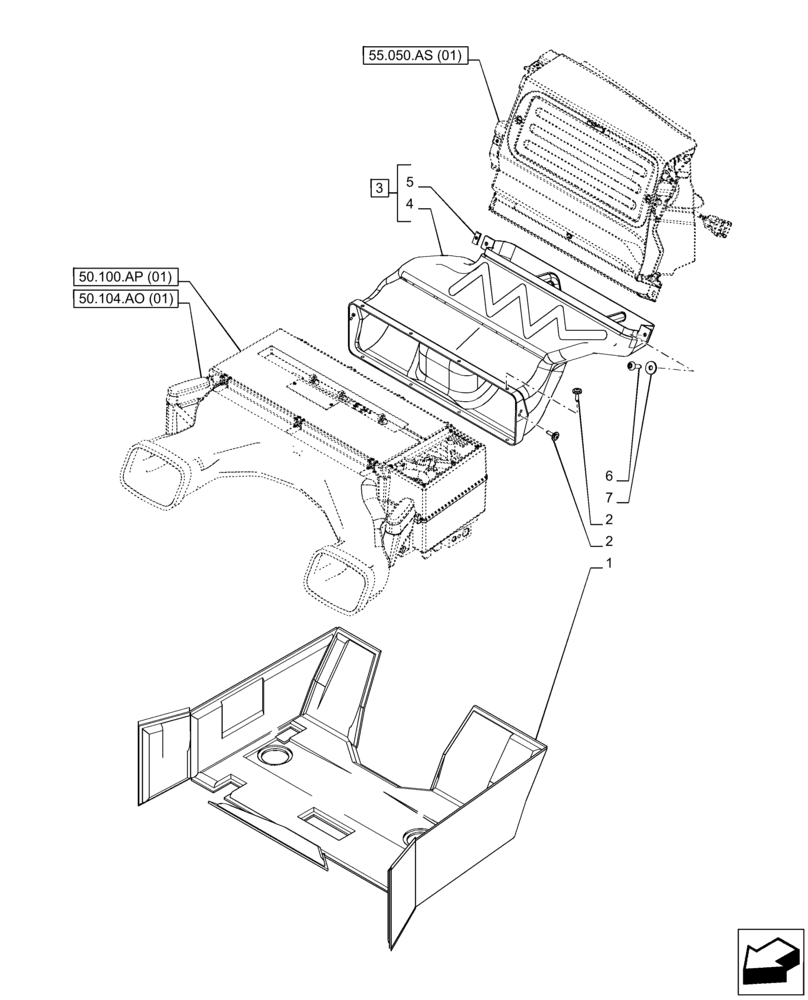

Схема запчастей Case IH PUMA 165 CVT - (50.104.AO[02]) - VAR - 391176, 758255, 758256, 758257, 758258, 758259, 758260, 758261, 758262, 758263, 758264, 758265 - AIR CONDITIONER, AIR DUCT (50) - CAB CLIMATE CONTROL
7
50.100.ap (01)
5
6
55.050.as (01)
2
2
4
3
1
50.104.ao (01)

Артикул

Название

Примечание

Количество

1

87661585

INSULATOR

Rear Floor

1шт.

2

82023989

CAPTIVE WASHER SCREW,Cross Pan Hd, #8 - 18 x 0.75", Type AB Thd Forming Pt

10шт.

3

87614773

AIR DUCT

ASSY, Incl 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Duct, Incl in 3

1шт.

5

87567755

SPRING NUT,M5

M5

2шт.

6

84187815

SCREW,Pan Hd, M5.5 x 1.8 x 19mm

2шт.

For Models W/ Powershift Transmission

1шт.

6

15647001

SELF-TAP SCREW,Pozidriv Pan Hd, M12 x 19mm

2шт.

For Models W/ CVT Transmission

1шт.

7

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

Выбрано товаров: 10
