Запчасти Case IH PUMA 165 CVT (50.100.AC) - VAR - 391130, 758000 - HEATER, LINES (50) - CAB CLIMATE CONTROL

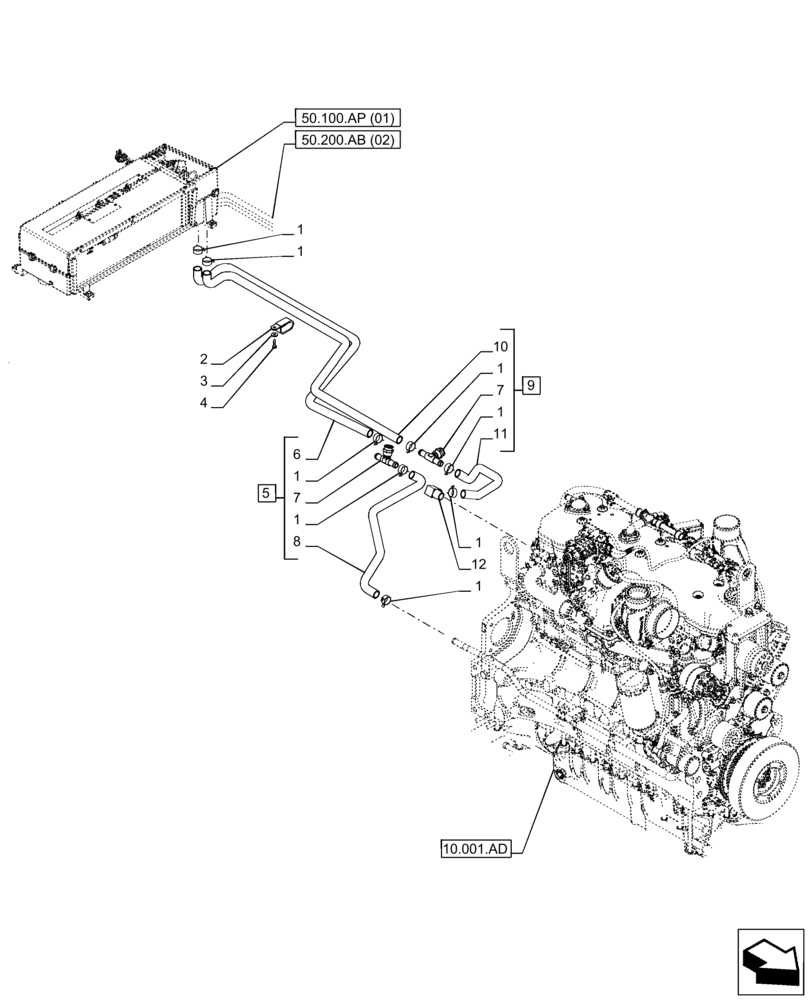

Схема запчастей Case IH PUMA 165 CVT - (50.100.AC) - VAR - 391130, 758000 - HEATER, LINES (50) - CAB CLIMATE CONTROL
10.001.ad
2
1
1
1
50.200.ab (02)
7
1
7
6
3
11
12
1
1
5
4
50.100.ap (01)
1
8
9
10
1

Артикул

Название

Примечание

Количество

1

82019905

HOSE CLAMP,22 - 26mm X 12mm

8шт.

2

82023568

CLAMP,2 Hoses

Water Hose

1шт.

3

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

1шт.

4

82880748

SCREW,Pozidrive, Pan HD, M6 x 2 x 14mm, Cl 4.8

1шт.

5

47438368

LARGE HOSE

ASSY, Incl 1, 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

Hose, Heater, Incl in 5

1шт.

7

84283392

UNION TEE

2шт.

8

NSS

NOT SOLD SEPARAT

Hose, Heater, Incl in 5

1шт.

9

47438339

LARGE HOSE

ASSY, Incl 1, 7, 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Hose, Heater, Incl in 9

1шт.

11

NSS

NOT SOLD SEPARAT

Hose, Heater, Incl in 9

1шт.

12

87302771

ADAPTER

Elbow

1шт.

Выбрано товаров: 12
