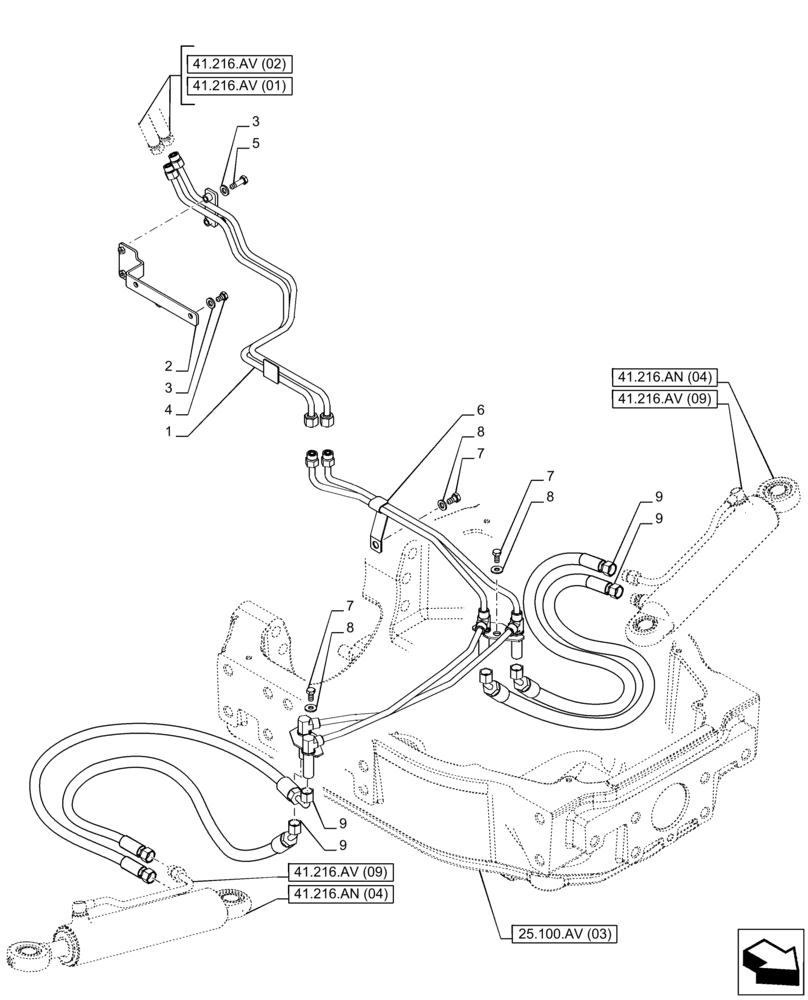

Запчасти Case IH PUMA 165 CVT (41.216.AV[05]) - VAR - 758047 - SUPERSTEER FRONT AXLE, STEERING CYLINDER HYD. LINE (41) - STEERING

1

47567674

PIPE

1шт.

2

87539835

BRACKET

Power Steering

1шт.

3

14499304

WASHER,6.4mm ID x 11mm OD x 1.6mm Thk

2шт.

4

86624003

BOLT,Hex, M8 x 14mm, Cl 8.8, Full Thd

2шт.

5

120101

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

2шт.

6

47435037

PIPE

Power Steering

1шт.

7

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

3шт.

8

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

3шт.

9

82039395

HOSE,9.53mm ID x 750mm L, SAE 100R16

4шт.
