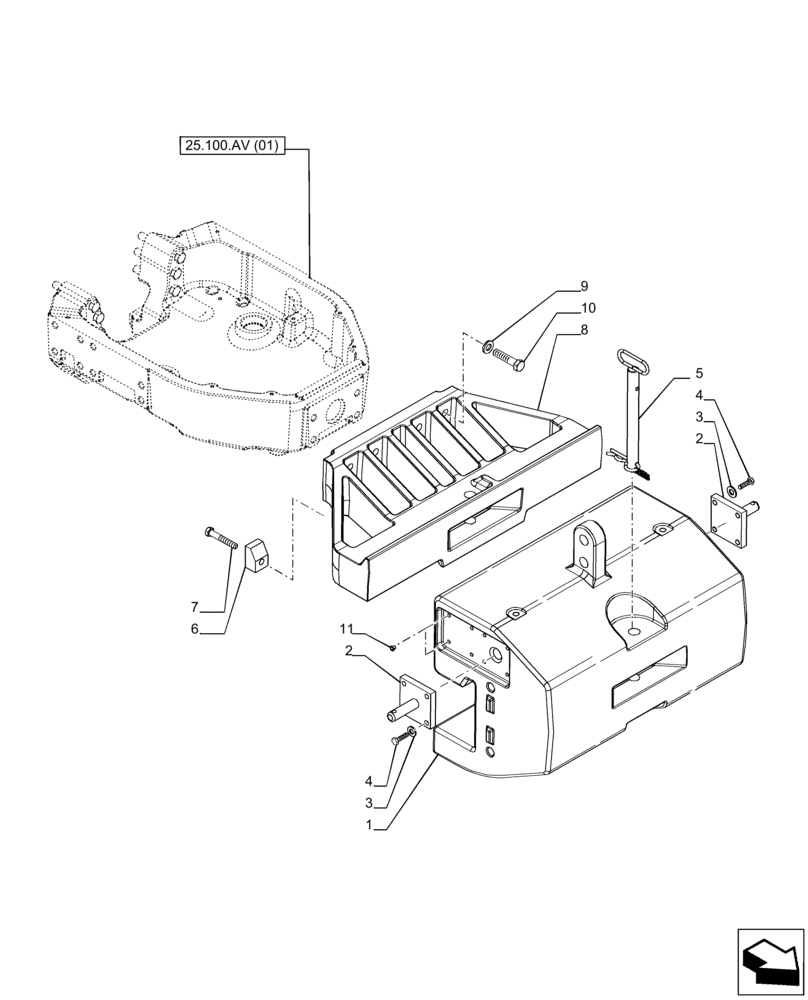

Запчасти Case IH PUMA 165 CVT (39.140.AF[01]) - VAR - 758098 - FRONT WEIGHT (1000 KG) (39) - FRAMES AND BALLASTING

1

84551478

WEIGHT,1000kg

1000kg

1шт.

2

87301897

HEADED PIN,28mm OD x 120mm L

2шт.

3

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

8шт.

4

11113020

BOLT,Hex, M12 x 45mm, Cl 8.8, Full Thd

8шт.

5

44995060

CLEVIS PIN,31mm OD x 315mm L

1шт.

6

87376911

CLAMP,0.932 Kg

2шт.

7

374889

BOLT,Hex, M16 x 100mm, Cl 8.8

2шт.

8

82031491

WEIGHT CARRIER

1шт.

9

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

6шт.

10

412346

BOLT,Hex, M20 x 2.5 x 90mm, Cl 8.8

6шт.

11

85700893

COVER

8шт.
