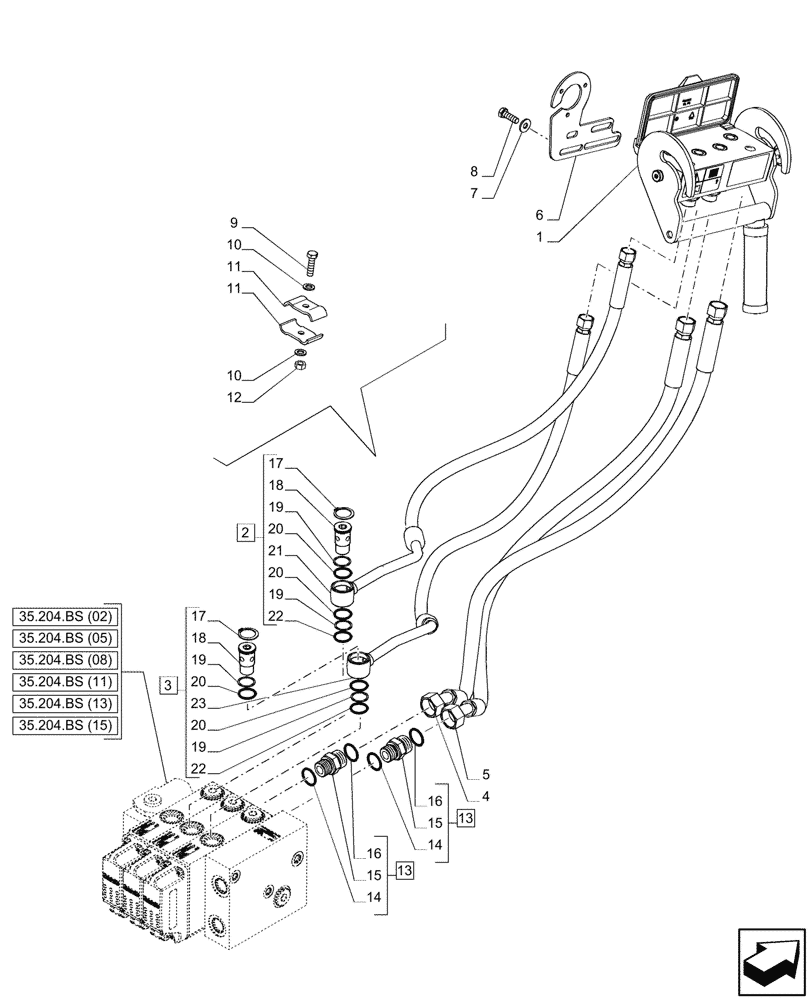

Запчасти Case IH PUMA 165 CVT (35.701.AD) - VAR - 758198 - LOADER ARM, FRONT, QUICK COUPLER (35) - HYDRAULIC SYSTEMS

1

87733579

COUPLING

1шт.

2

47526694

PIPE

Loader Raise, ASSY, Incl 18 - 22

1шт.

3

47526692

PIPE

Loader Crowd, ASSY, Incl 18 - 20, 22, 23

1шт.

4

47526696

HOSE

Loader Top

1шт.

5

47526697

HOSE

Loader Lower

1шт.

6

87736290

BRACKET

1шт.

7

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

3шт.

8

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

9

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

10

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

11

84177648

CLAMP BRACKET

2шт.

12

9706690

NUT,M8 x 1.25, Cl 8

1шт.

13

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

ASSY, Incl 14 - 16

1шт.

14

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

15

NSS

NOT SOLD SEPARAT

Connector, Incl in 13

1шт.

16

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

17

300629

SNAP RING,M28, Ext

2шт.

18

47530975

BANJO BOLT,M22 x 1.5

M22 x 1.5

2шт.

19

47361752

RING,24.28mm ID x 28.64mm OD x 1.35mm Thk

4шт.

20

271913

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

2шт.

21

NSS

NOT SOLD SEPARAT

Pipe, Incl in 2

1шт.

22

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

23

NSS

NOT SOLD SEPARAT

Pipe, Incl in 3

1шт.
