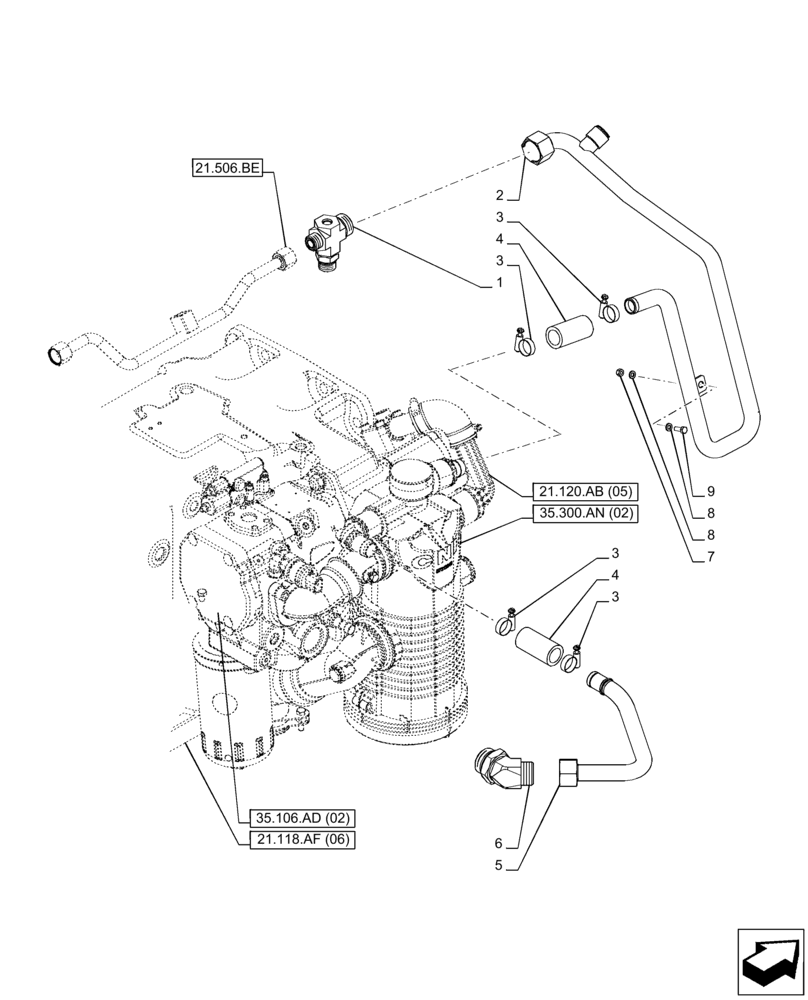

Запчасти Case IH PUMA 165 CVT (35.322.AY[17]) - VAR - 391138, 758022 - TRANSMISSION, LOW PRESSURE, LINE (35) - HYDRAULIC SYSTEMS

1

47411875

PIPE FITTING,1"-14 x M27 x 2 x 1"7/16

1шт.

2

47366371

HYD TUBE

Lube

1шт.

3

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

4шт.

4

87653735

HOSE,25mm ID x 70mm L

G Port

2шт.

5

84140156

PRESSURE PIPE

1шт.

6

87653734

45 ELBOW,1-7/16"-12 ORFS x M42 x 2 ORB

1шт.

7

10720114

NUT,Hex, M6 x 1

M6

1шт.

8

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

9

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

1шт.
