(35.322.AY[16]) - VAR - 391138, 758022 - TRANSMISSION, LOW PRESSURE, LINE

Запчасти Case IH PUMA 165 CVT (35.322.AY[16]) - VAR - 391138, 758022 - TRANSMISSION, LOW PRESSURE, LINE (35) - HYDRAULIC SYSTEMS

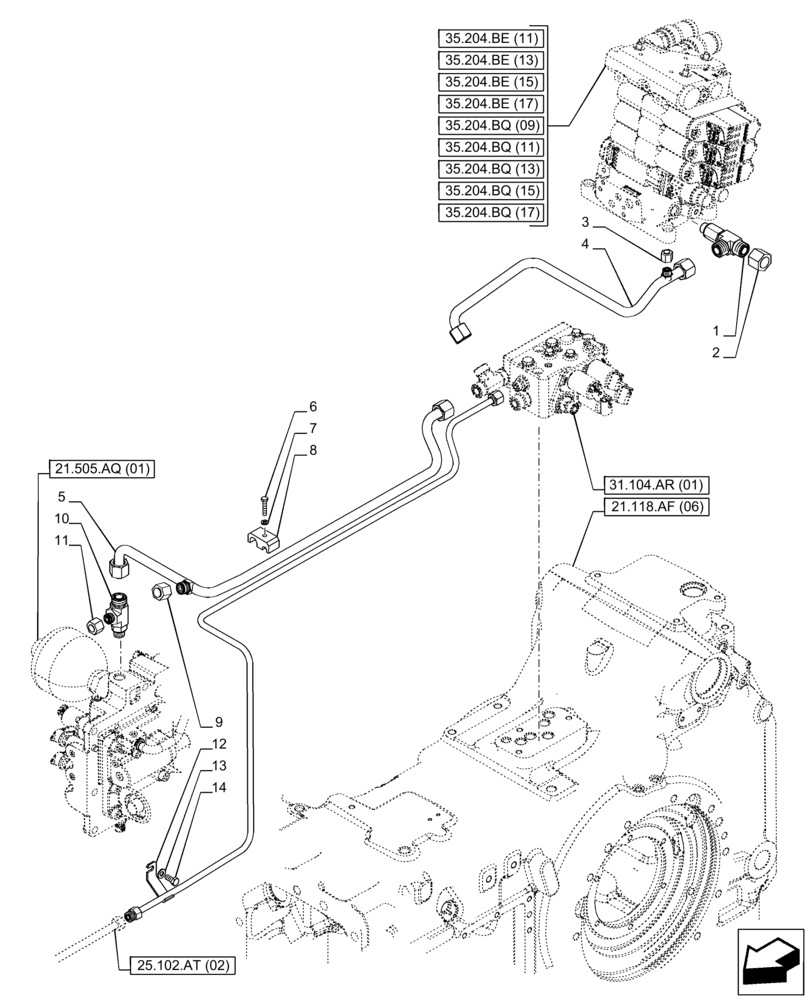

Схема запчастей Case IH PUMA 165 CVT - (35.322.AY[16]) - VAR - 391138, 758022 - TRANSMISSION, LOW PRESSURE, LINE (35) - HYDRAULIC SYSTEMS
35.204.be (15)
11
35.204.bq (15)
35.204.bq (09)
35.204.be (17)
6
3
4
13
7
5
2
10
35.204.be (11)
8
9
25.102.at (02)
35.204.be (13)
1
35.204.bq (11)
31.104.ar (01)
12
35.204.bq (13)
35.204.bq (17)
21.505.aq (01)
21.118.af (06)
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87571078

HYD CONNECTOR,1"-14 x 1"-14 x M18 x 1.5

1шт.

2

9840576

CAP,1" - 14 ORFS

1шт.

3

87668376

CAP,9/16"-18 Inch THD

1шт.

4

84280019

PRESSURE PIPE

Remote Valve

1шт.

5

84140134

PRESSURE PIPE

1шт.

6

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

7

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

8

87735418

CLAMP BRACKET

1шт.

9

9840575

CAP,13/16" - 16 ORFS

1шт.

10

5185049

TEE,1"-14 ORFS x 11/16-16 ORFS x M18 x 1.5 ORB

1шт.

11

9625546

CAP,11/16" - 16 ORFS

1шт.

12

84140130

PRESSURE PIPE

Front Differential Lock

1шт.

13

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

14

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.
