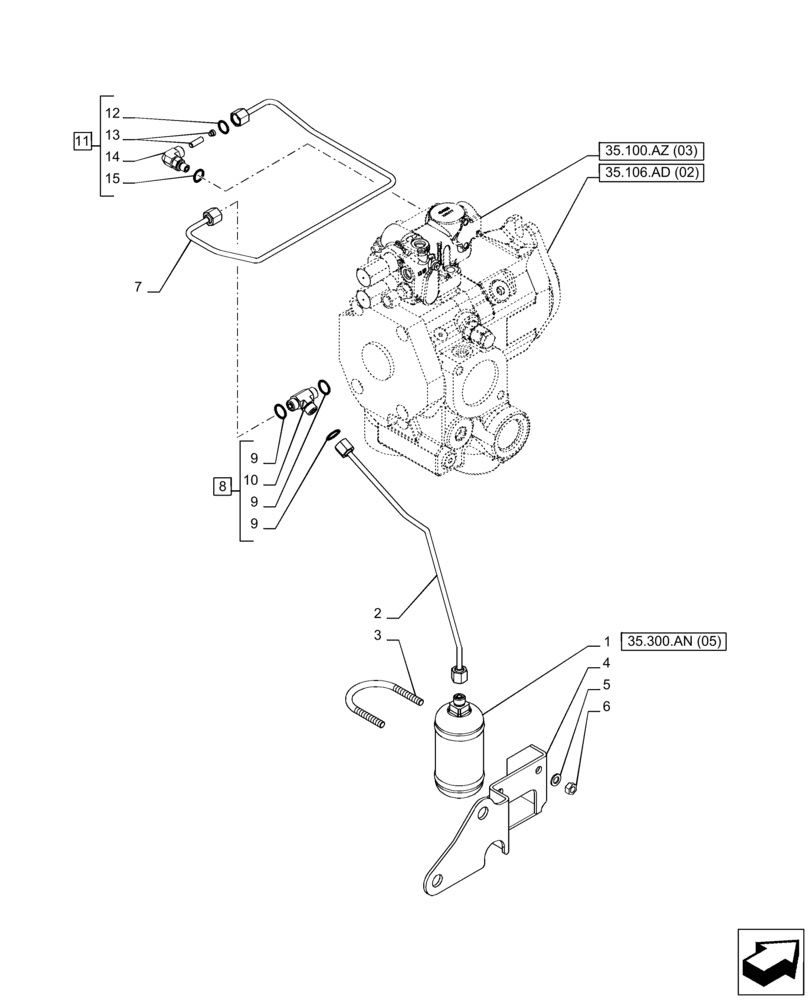

Запчасти Case IH PUMA 165 CVT (35.300.AN[06]) - VAR - 391158, 758052, 758053 - OIL FILTER, PRIORITY VALVE, CVT (35) - HYDRAULIC SYSTEMS

1

84408141

HYDRAULIC OIL FILTER,60mm OD x 142.5mm L, 9/16-18

1шт.

2

84378287

HYD TUBE

LS Resounding

1шт.

3

84152220

U-BOLT,M8 x 2, ZND

1шт.

4

84382192

SUPPORT

Resounding

1шт.

5

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

6

9706690

NUT,M8 x 1.25, Cl 8

2шт.

7

84382523

HYD TUBE

Priority Valve

1шт.

8

9840568

TEE,9/16"-18 ORFS

ASSY, Incl 9, 10

1шт.

9

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

10

NSS

NOT SOLD SEPARAT

Tee, Incl in 8

1шт.

11

47135296

90 ELBOW,9/16"-18 x 7/16"-20

ASSY, Incl 12 - 15

1шт.

12

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

13

47126655

FILTER STRAINER

1шт.

14

NSS

NOT SOLD SEPARAT

Elbow, Incl in 11

1шт.

15

5185507

O-RING,8.92mm ID x 1.83mm Width

1шт.
