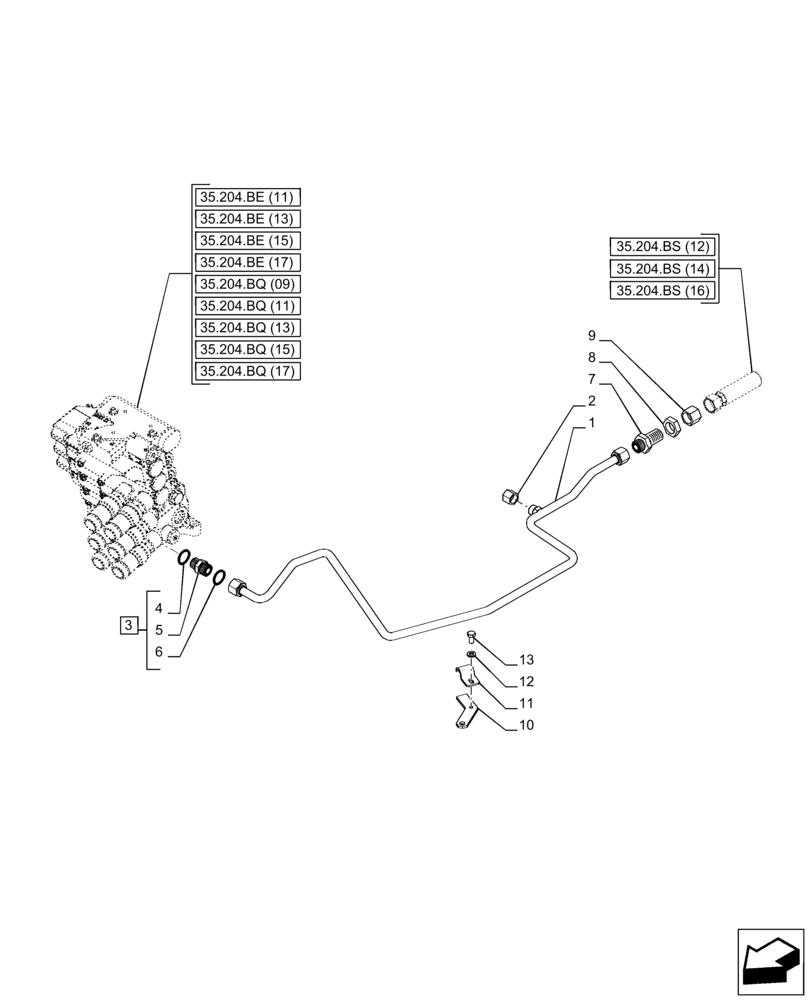

Запчасти Case IH PUMA 165 CVT (35.204.BJ[05]) - VAR - 758045, 758046, 758064, 758065, 758066 - REMOTE CONTROL VALVE, LINE (35) - HYDRAULIC SYSTEMS

1

47668385

PIPE

Supply

1шт.

2

9840575

CAP,13/16" - 16 ORFS

1шт.

3

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

ASSY, Incl 4 - 6

1шт.

4

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

6

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

7

86978771

UNION,16mm L

1шт.

8

86639085

BHD LOCK NUT,1"-14, Bulkhead

1шт.

9

9840576

CAP,1" - 14 ORFS

1шт.

10

47450616

BRACKET

1шт.

11

5178447

BRACKET

1шт.

12

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

13

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.
