/ / / / / / / / (35.204.BE[18]) - VAR - 758058 - 4 REMOTE CONTROL VALVE (MHR W/PB), COMPONENTS
Запчасти Case IH PUMA 165 CVT (35.204.BE[18]) - VAR - 758058 - 4 REMOTE CONTROL VALVE (MHR W/PB), COMPONENTS (35) - HYDRAULIC SYSTEMS

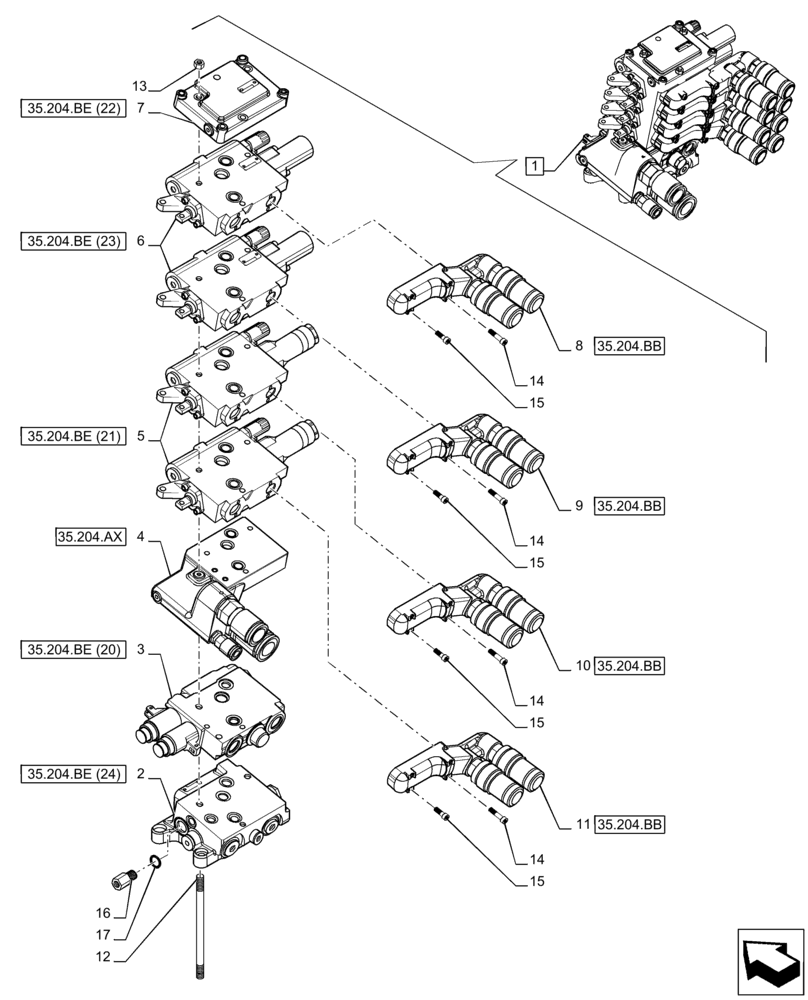

![Схема запчастей Case IH PUMA 165 CVT - (35.204.BE[18]) - VAR - 758058 - 4 REMOTE CONTROL VALVE (MHR W/PB), COMPONENTS (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/caseih/5227923.png)
6
4
14
7
13
17
35.204.bb
9
2
35.204.bb
35.204.be (22)
10
1
35.204.bb
16
15
35.204.be (20)
35.204.be (21)
15
35.204.ax
14
14
8
3
11
35.204.be (24)
14
15
35.204.bb
15
5
12
35.204.be (23)
1
84146796
CONTROL VALVE
ASSY, Incl 2 - 17
1шт.
2
84142195
HYD VALVE SECTION
1шт.
3
84175671
VALVE SECTION
1шт.
3
84175671R
REMAN-HYD VALVE
1шт.
3
84175671C
CORE-VALVE HYD
Return Number
1шт.
4
84146807
HYD VALVE SECTION
1шт.
5
87328572
HYD VALVE SECTION
2шт.
5
87328572R
REMAN-HYD VALVE
2шт.
5
87328572C
CORE-VALVE HYD
Return Number
2шт.
6
87546169
CONTROL VALVE
2шт.
6
87546169R
REMAN-HYD VALVE
2шт.
6
87546169C
CORE-VALVE HYD
Return Number
2шт.
7
5192188
BODY
1шт.
8
87381965
QUICK MALE COUPLING
4 MHR
1шт.
9
87381964
QUICK MALE COUPLING
3 MHR
1шт.
10
87381963
QUICK MALE COUPLING
2 MHR
1шт.
11
87381958
QUICK MALE COUPLING
1 MHR
1шт.
12
84150182
THREADED TIE-ROD,291mm L
M8
3шт.
13
5195169
NUT,M8
M8
3шт.
14
47129475
HEX SOC SCREW,M6 x 50mm
M6 x 50
6шт.
15
47129474
HEX SOC SCREW,M6 x 35mm
M6 x 35
6шт.
16
5191704
CHECK VALVE
1шт.
17
5191705
O-RING,9.4mm D x 2.1mm Thk
1шт.
