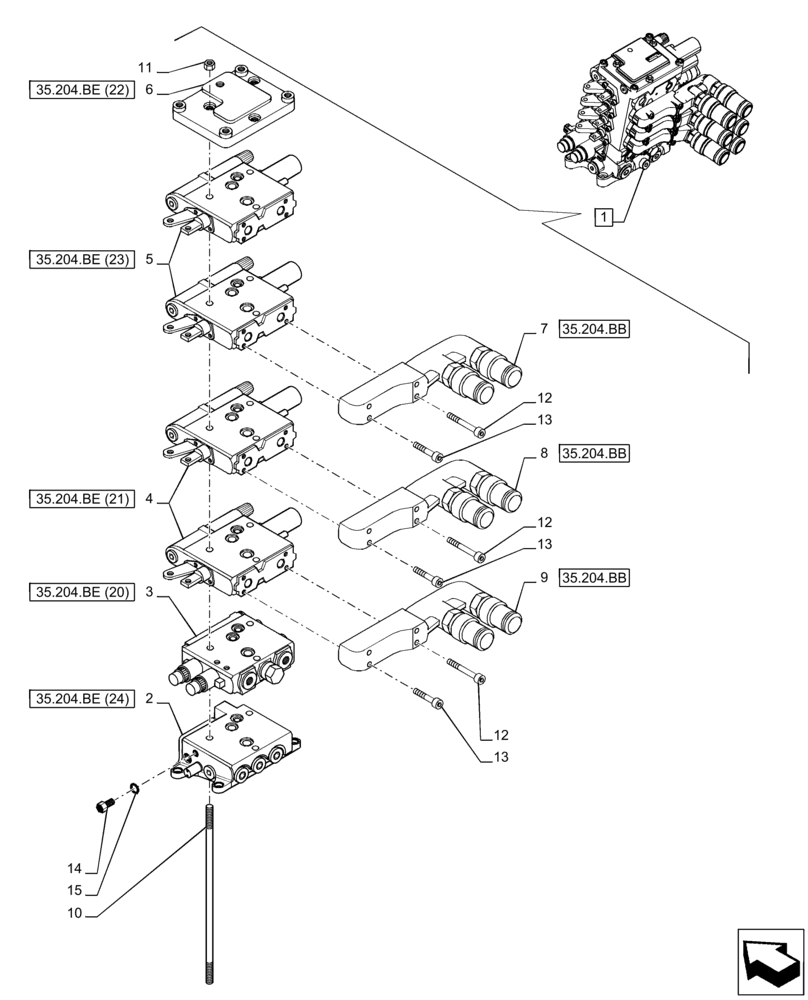

Запчасти Case IH PUMA 165 CVT (35.204.BE[16]) - VAR - 758050 - 4 REMOTE CONTROL VALVE (MHR), COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84142641

CONTROL VALVE

ASSY, Incl 2 - 15

1шт.

2

84142195

HYD VALVE SECTION

1шт.

3

84175671

VALVE SECTION

1шт.

3

84175671R

REMAN-HYD VALVE

1шт.

3

84175671C

CORE-VALVE HYD

Return Number

1шт.

4

87328572

HYD VALVE SECTION

2шт.

4

87328572R

REMAN-HYD VALVE

2шт.

4

87328572C

CORE-VALVE HYD

Return Number

2шт.

5

87546169

CONTROL VALVE

2шт.

5

87546169R

REMAN-HYD VALVE

2шт.

5

87546169C

CORE-VALVE HYD

Return Number

2шт.

6

5192188

BODY

1шт.

7

87381964

QUICK MALE COUPLING

3 MHR

1шт.

8

87381963

QUICK MALE COUPLING

2 MHR

1шт.

9

87381958

QUICK MALE COUPLING

1 MHR

1шт.

10

47129476

THREADED TIE-ROD,M8

M8

3шт.

11

5195169

NUT,M8

M8

3шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

M6 x 50

6шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

M6 x 35

6шт.

14

5191704

CHECK VALVE

1шт.

15

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.
