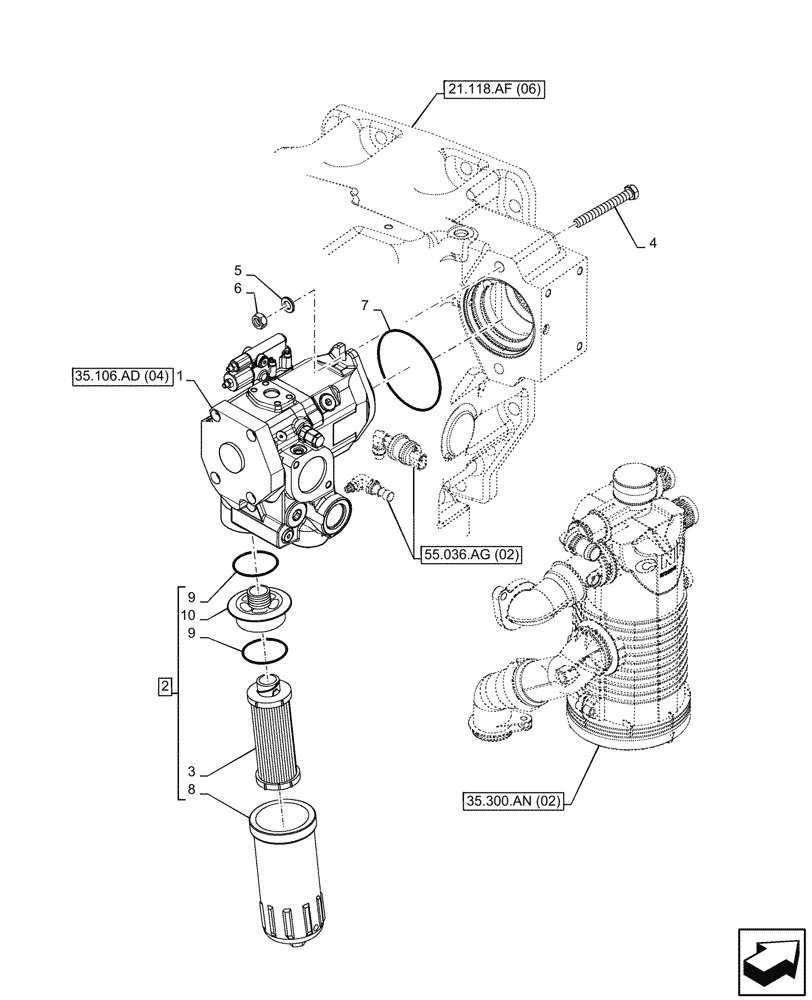

Запчасти Case IH PUMA 165 CVT (35.106.AD[02]) - VAR - 391161 - HYDRAULIC PUMP, CVT (35) - HYDRAULIC SYSTEMS

1

84353126

HYDRAULIC PUMP,Gear, 56 CC / 74 CC

(56 - 74 CC/Rev)

1шт.

2

84341286

HYDRAULIC OIL FILTER,289.5mm L

ASSY, Incl 3, 8 -10

1шт.

AFTER THE FIRST 50 HOURS REPLACE THE FILTER WITH: PN 84417137 - Housing / PN 84417139 - Filter Cartridge / PN 84550359 - Filter O Ring; FOR OTHER TIME REPLACE THE FILTER WITH: PN 84417139 - Filter Cartridge / PN 84550359 - Filter O Ring

1шт.

3

84417139

ELEMENT,267.5mm L, 11 Micron

on CCLS Hydraulic Pump, 289.5mm

1шт.

4

15978124

BOLT,Hex, M14 x 1.5 x 120mm, Cl 8.8

2шт.

5

10730821

WASHER,Flat, 14.40mm ID x 26.00mm OD x 3.00mm, R80, ZND

2шт.

6

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

2шт.

7

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

8

84417137

FILTER BOWL

1шт.

9

84550359

O-RING,84.50mm ID x 3.00mm

2шт.

10

NSS

NOT SOLD SEPARAT

Adapter, Incl in 2

1шт.
