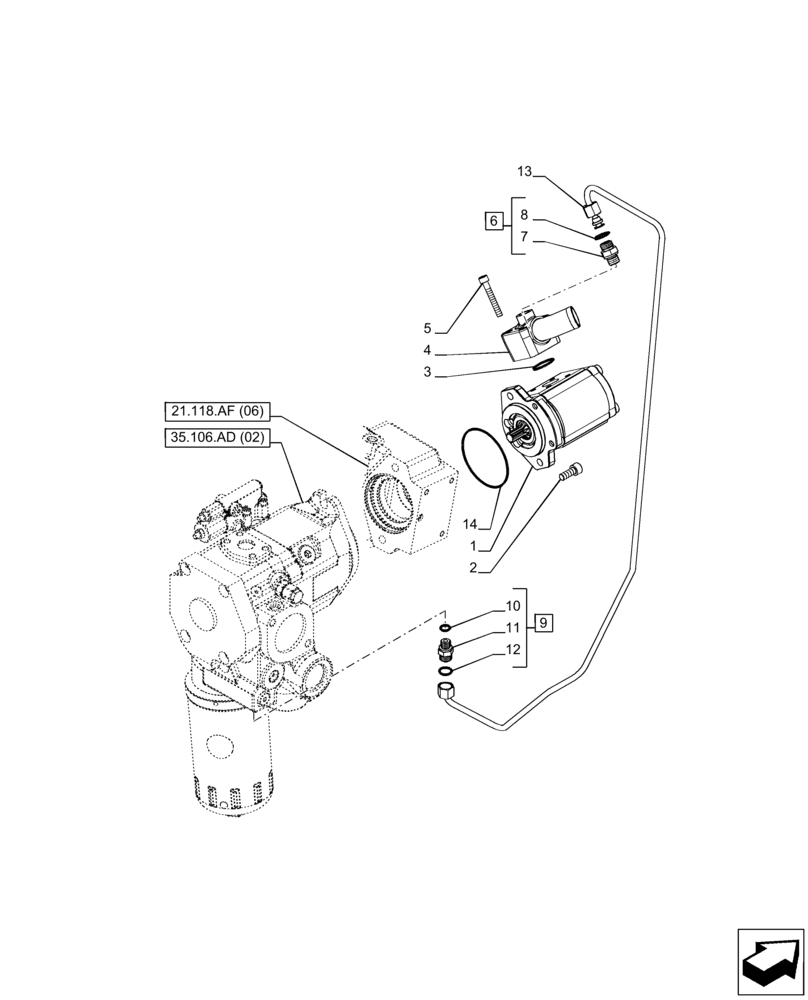

Запчасти Case IH PUMA 165 CVT (35.104.AA[02]) - VAR - 391161, 758055 - HYDRAULIC PUMP, CVT (35) - HYDRAULIC SYSTEMS

1

84355757

HYDRAULIC PUMP,21.95 CC

(25 CC/Rev)

1шт.

2

86544072

HEX SOC SCREW,M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

3

14463681

O-RING,31.34mm ID x 3.53" Width

1шт.

4

84181974

FLANGE

1шт.

5

14302231

SCREW,M8 x 55mm, Cl 10.9

4шт.

6

84181973

HYD CONNECTOR

ASSY, Incl 7, 8

1шт.

7

87323514

SLEEVE VALVE

1шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

9

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

ASSY, Incl 10 - 12

1шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

1шт.

12

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

13

84371827

TUBE

Booster

1шт.

14

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.
