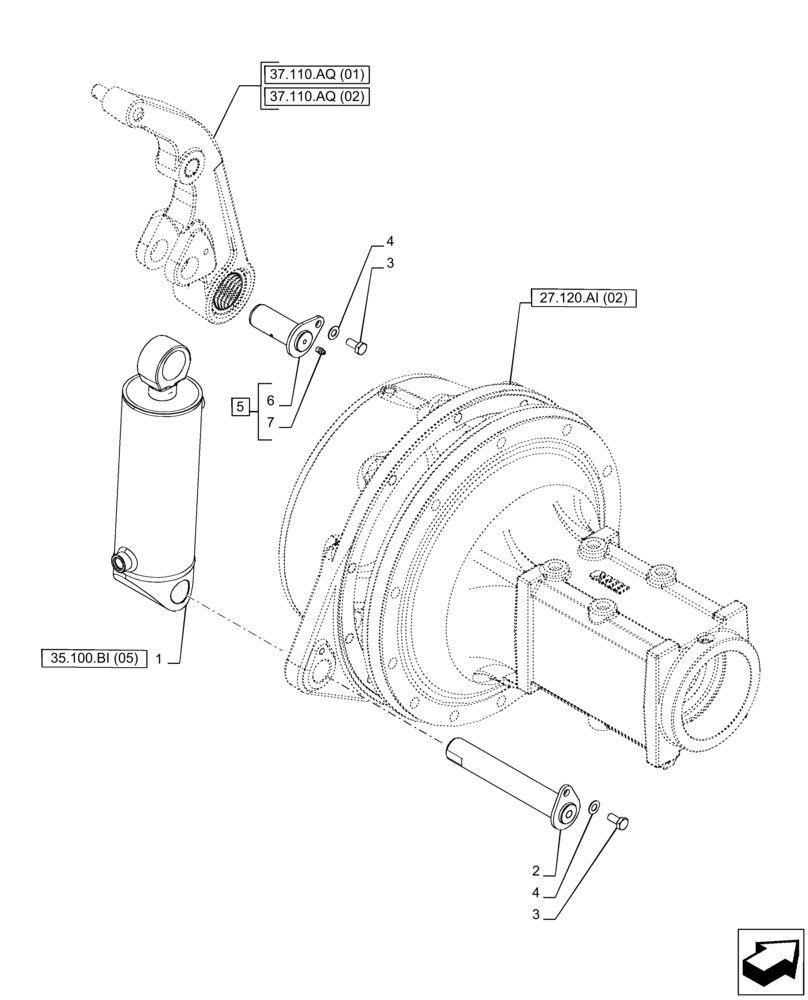

Запчасти Case IH PUMA 165 CVT (35.100.BI[03]) - VAR - 391170, 758071, 758072, 758073, 758074 - LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

84154689

LIFT CYLINDER,Double Acting, 40mm Rod, 177mm Stroke

2шт.

2

47130245

PIN,34.7mm OD x 224mm L

2шт.

3

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

4шт.

4

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

5

5190967

PIN,34.7mm OD x 96mm L

ASSY, Incl 6, 7

2шт.

6

NSS

NOT SOLD SEPARAT

Pin, Incl in 5

1шт.

7

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.
