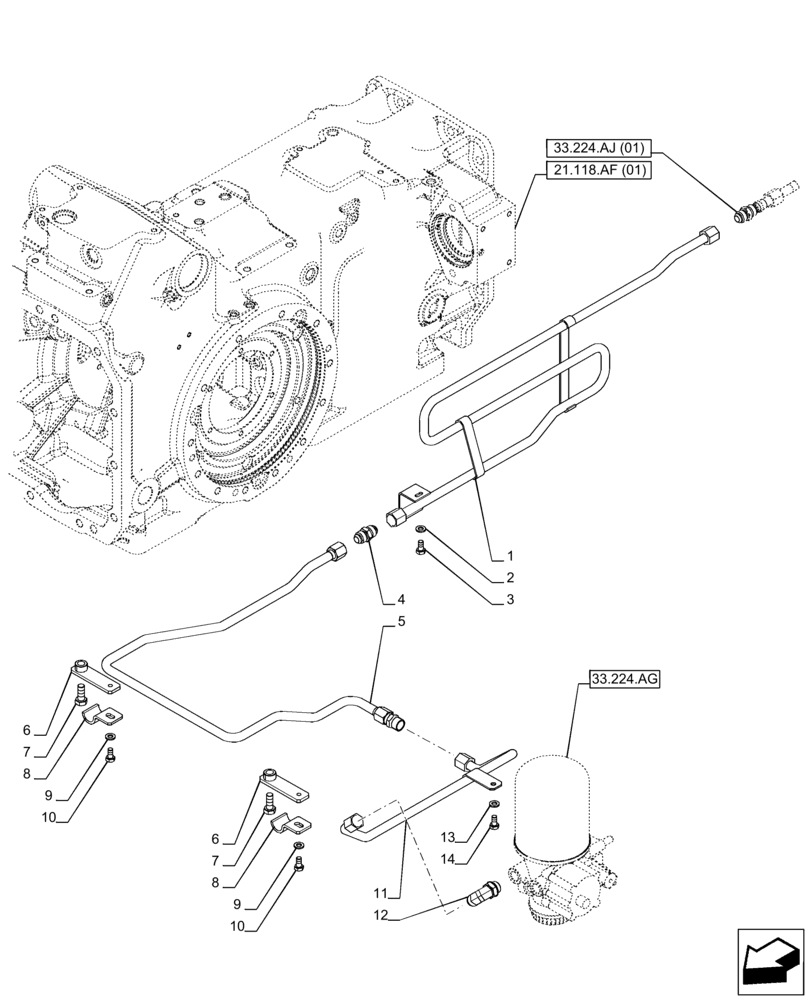

Запчасти Case IH PUMA 165 CVT (33.224.AJ[03]) - VAR - 758038, 758039, 758041, 758042, 758043, 758044 - TRAILER BRAKE, COMPRESSOR, INLINE (33) - BRAKES & CONTROLS

1

87702803

RIGID TUBE,16.00mm OD

Supply

1шт.

2

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

3

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

4

82024503

HYD CONNECTOR,7/8"-14 x 7/8"-14

1шт.

5

84317595

PIPE

Dryer

1шт.

6

84317379

BRACKET

2шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

8

5178447

BRACKET

2шт.

9

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

2шт.

10

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

11

84555448

HYD TUBE

Dryer

1шт.

11

84556517

HYD TUBE

Dryer

1шт.

Valid for 7.175 models only

1шт.

12

82003206

ELBOW,90 Deg, 7/8-14 x M22 x 1.5 ORB

1шт.

13

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

14

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.
