Запчасти Case IH PUMA 165 CVT (31.116.AL[03]) - VAR - 758023 - PTO 540/540E/1000 RPM, GROUND SPEED, PTO, SHAFT, REAR (31) - IMPLEMENT POWER TAKE OFF

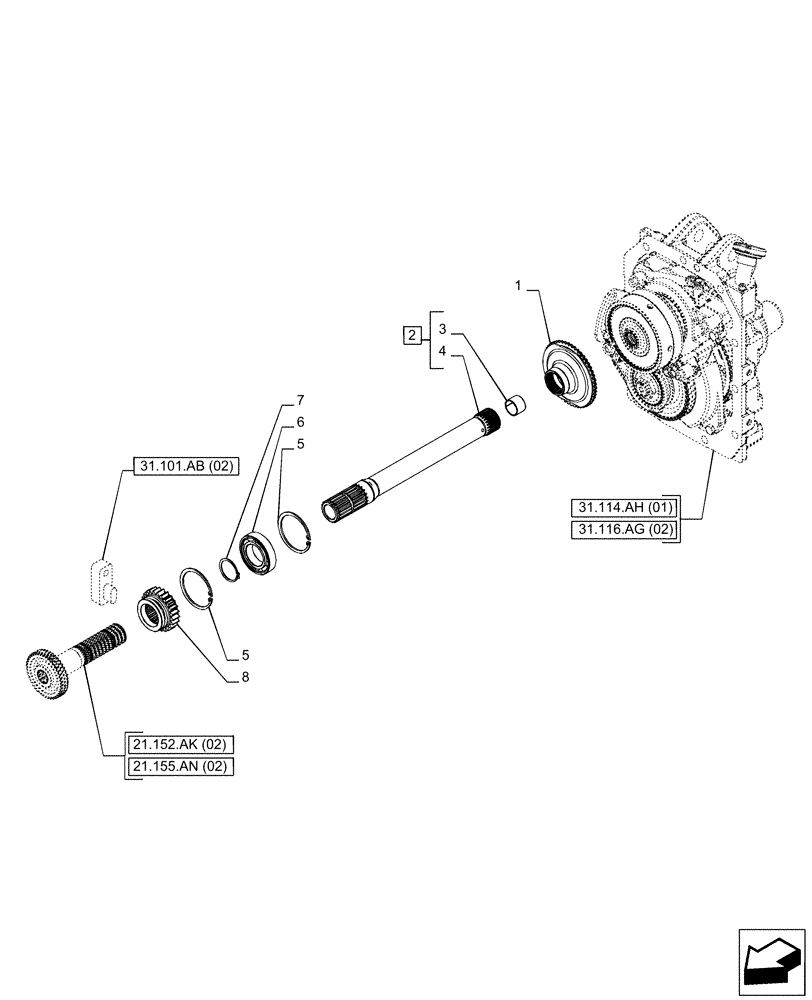

Схема запчастей Case IH PUMA 165 CVT - (31.116.AL[03]) - VAR - 758023 - PTO 540/540E/1000 RPM, GROUND SPEED, PTO, SHAFT, REAR (31) - IMPLEMENT POWER TAKE OFF
5
31.114.ah (01)
1
21.155.an (02)
2
7
6
31.116.ag (02)
31.101.ab (02)
3
8
21.152.ak (02)
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5198546

HUB,50T

1шт.

2

87373863

PTO SHAFT

Rear, ASSY, Incl 3, 4

1шт.

3

5107725

BUSHING,31.99mm ID x 36mm OD x 25mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

5

11062476

SNAP RING,M90, Int

2шт.

6

26794660

BALL BEARING,50.00mm x 90.00mm x 20.00mm

1шт.

7

11069376

SNAP RING,M50, Ext

1шт.

8

5153151

GEAR,18T, 24T

1шт.
