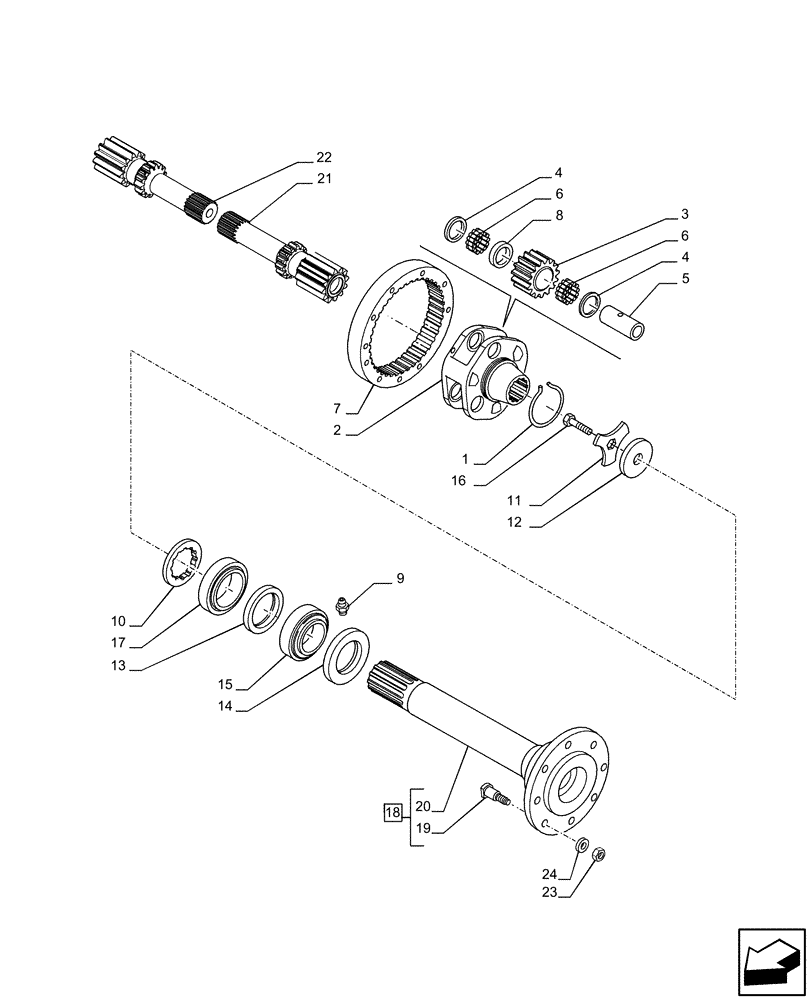

Запчасти Case IH PUMA 165 CVT (27.120.AF[01]) - VAR - 391158, 758052, 758053 - FINAL DRIVE, GEAR, CVT (27) - REAR AXLE SYSTEM

1

5136132

CIRCLIP,4mm Thk

2шт.

2

87573468

PINION CARRIER

2шт.

3

87573467

PLANETARY GEAR,36T

6шт.

4

5136128

THRUST WASHER,62.5mm ID x 108mm OD x 1mm Thk

12шт.

5

5136130

PIN,62.4mm OD x 134mm L

6шт.

6

5136131

ROLLER BEARING,62.4mm ID x 76.4mm OD x 32mm W

6шт.

7

5165495

RING GEAR,88T, 60mm L

2шт.

8

87573466

SPACER,64.5mm ID x 76.3mm OD x 9mm L

6шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

5121644

THRUST WASHER,78mm ID x 112mm OD x 5mm Thk

2шт.

11

47621155

PLATE

2шт.

12

5165501

DISC,18.5mm ID x 95mm OD x 8.5mm Thk

2шт.

13

5165505

SEAL,88mm ID x 110mm OD x 12mm Thk

Internal, 88mm x 110mm x 12mm

2шт.

14

5165506

SEAL,112mm ID x 140mm OD x 16mm Thk

External, 112mm x 140mm x 16mm

2шт.

15

24903700

ROLLER BEARING,90mm ID x 140mm OD x 32mm W

2шт.

16

47638419

BOLT,Hex, M18 x 1.50 x 50mm, Cl 10.9

2шт.

17

24903500

TAPERED BEARING,85mm ID x 130mm OD x 29mm W

2шт.

18

87679488

DRIVE SHAFT,29T

ASSY, Incl 19, 20

2шт.

19

87651028

STUD,Wheel, M18 x 1.5 x 65mm, Cl 10.9

8шт.

20

NSS

NOT SOLD SEPARAT

Drive Shaft, Incl in 18

2шт.

21

87592306

SHAFT,408.50mm

1шт.

22

87601793

SHAFT,425.50mm

1шт.

23

12164224

NUT,M18 x 1.5, Cl 10

16шт.

24

82014058

HOUSING

16шт.
