Запчасти Case IH PUMA 165 CVT (27.106.AA[01]) - VAR - 391138, 758022 - CENTRAL REDUCTION GEAR (27) - REAR AXLE SYSTEM

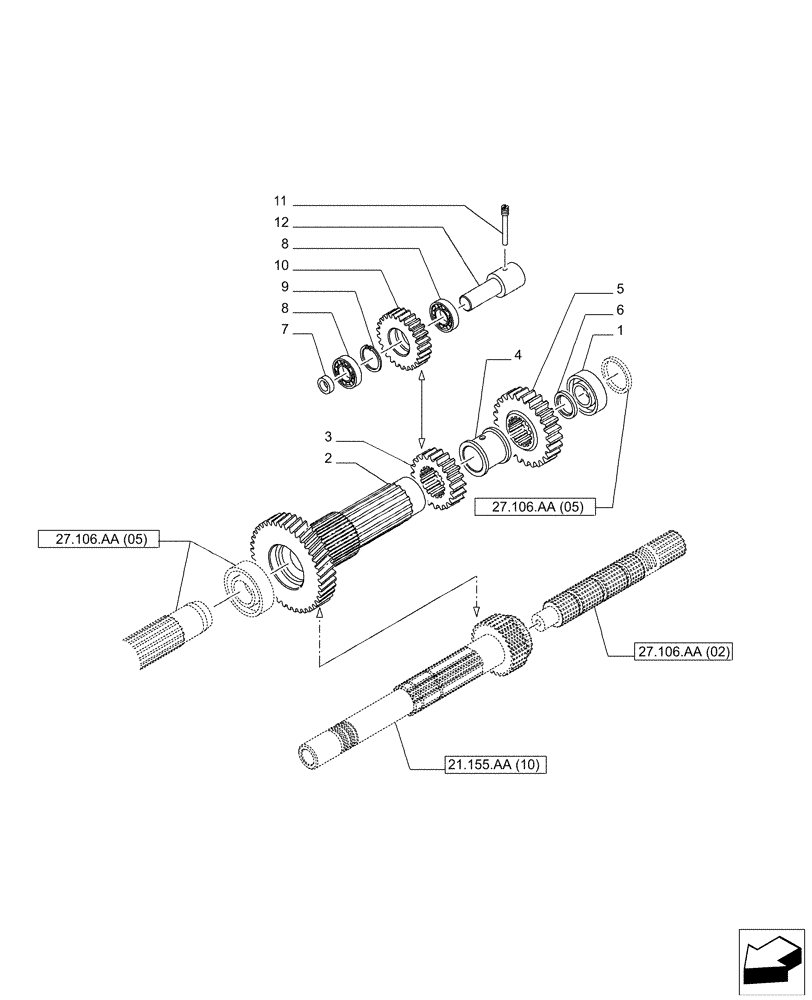

Схема запчастей Case IH PUMA 165 CVT - (27.106.AA[01]) - VAR - 391138, 758022 - CENTRAL REDUCTION GEAR (27) - REAR AXLE SYSTEM
27.106.aa (05)
7
8
8
12
11
4
3
1
6
10
2
5
9
21.155.aa (10)
27.106.aa (02)
27.106.aa (05)

Артикул

Название

Примечание

Количество

1

86570632

TAPERED BEARING,50mm ID x 90mm OD x 24.75mm W

1шт.

2

5166028

DRIVEN SHAFT,16T, 46T

1шт.

3

5160404

DRIVEN GEAR,16T, 21T

1шт.

4

5160345

SPACER,58.3mm ID x 72mm OD x 44mm L

1шт.

5

5166035

GEAR,25T, 59T

1шт.

6

5166040

THRUST WASHER,50.1mm ID x 68mm OD x 4.5mm Thk

1шт.

7

5160347

SPACER,25mm ID x 34mm OD x 10mm L

1шт.

8

20996680

BALL BEARING,25mm ID x 62mm OD x 17mm W

2шт.

9

11061076

SNAP RING,M62, Int

1шт.

10

5160382

DRIVEN GEAR,24T

1шт.

11

5178342

ROLL PIN,M10 x 1 x 96.5mm L

1шт.

12

5164846

SHAFT,25mm OD x 68mm L

1шт.

Выбрано товаров: 12
