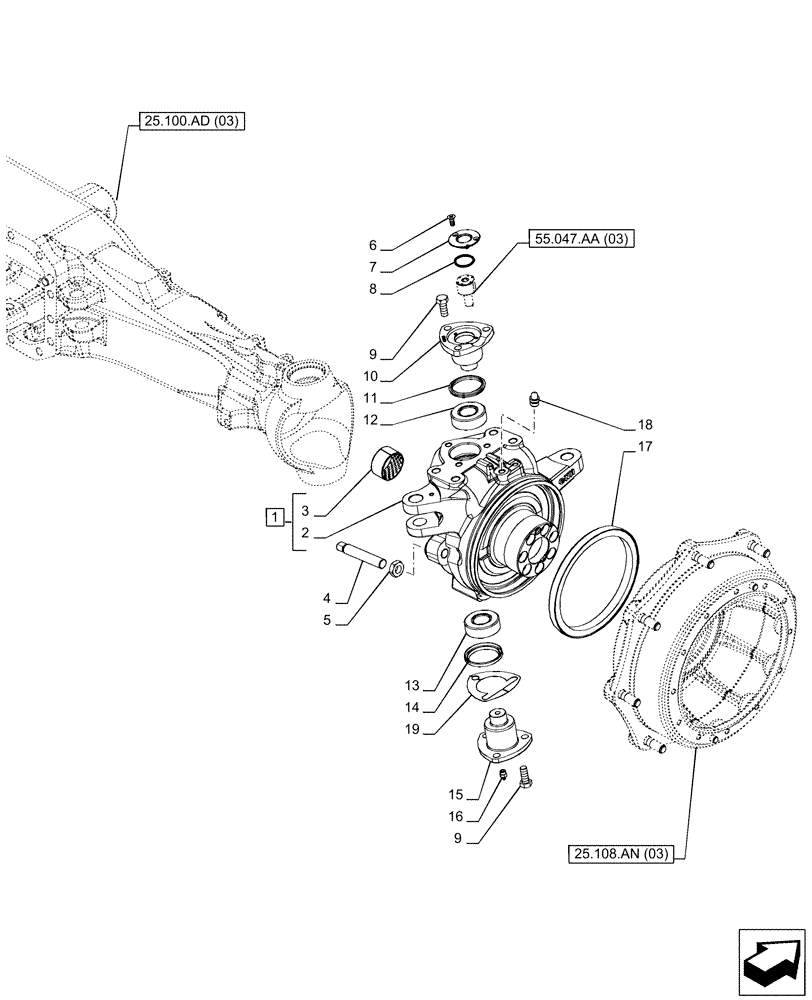

Запчасти Case IH PUMA 165 CVT (25.108.AG[05]) - VAR - 758046 - FRONT AXLE, SUSPENDED W/BRAKES, STEERING KNUCKLE, RH (25) - FRONT AXLE SYSTEM

1

87332318

STEERING KNUCKLE,RH

RH, ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Knuckle, Incl in 1

1шт.

3

84409817

BUSHING,52mm ID x 56mm OD x 28mm L

1шт.

4

87471124

STUD,M18

M18

1шт.

5

10717611

NUT,Thin, M18 x 2.5, Cl 04

1шт.

6

13299218

SCREW,Pozidriv Flat Hd, Csk, M5 x 12mm, Cl 5.8

2шт.

7

84384510

TOP

1шт.

8

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

9

16326234

BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9

6шт.

10

87382577

BALL STUD

Upper

1шт.

11

47137702

SEAL,56mm ID x 70mm OD x 10mm Thk

Upper

1шт.

12

47137677

SPH ROLLER BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

Upper

1шт.

13

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

Lower

1шт.

14

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

Lower

1шт.

15

87333763

BALL STUD

Lower

1шт.

16

13407211

LUBE NIPPLE,M10 x 1

1шт.

17

87355801

SEAL,190mm ID x 220mm OD x 17mm Thk

1шт.

18

13413290

BREATHER

1шт.

19

5137457

SHIM,56.5mm ID x 97mm OD x 0.15mm Thk

1шт.

19

5137459

SHIM,56.5mm ID x 97mm OD x 0.25mm Thk

1шт.

19

5137458

SHIM,56.5mm ID x 97mm OD x 0.2mm Thk

1шт.

19

5137456

SHIM,56.5mm ID x 97mm OD x 0.1mm Thk

1шт.

19

5137460

SHIM,56.5mm ID x 97mm OD x 0.3mm Thk

1шт.
