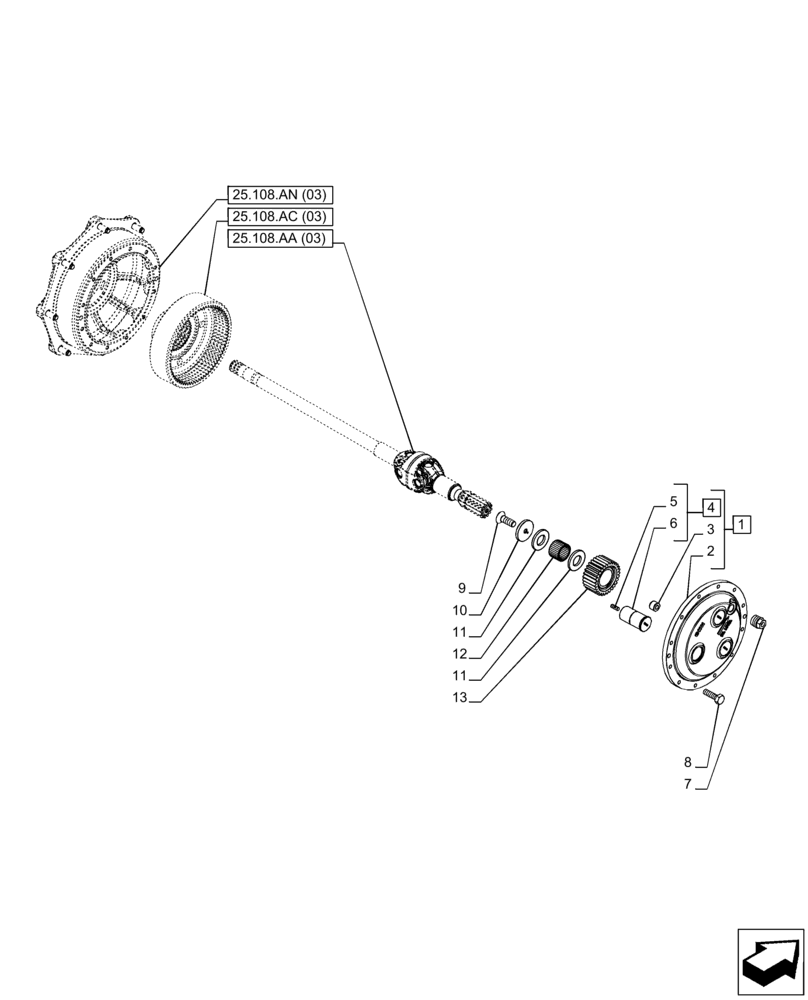

Запчасти Case IH PUMA 165 CVT (25.108.AB[03]) - VAR - 758046 - FRONT AXLE, SUSPENDED W/BRAKES, PLANETARY GEAR (25) - FRONT AXLE SYSTEM

1

87473022

PLANET CARRIER

ASSY, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

3

87604978

BUSHING

1шт.

4

87471121

PIN

ASSY, Incl 5, 6

3шт.

5

10333210

DOWEL,M4 x 10.00mm

1шт.

6

NSS

NOT SOLD SEPARAT

Pin, Incl in 4

1шт.

7

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

8

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.

9

87571800

HEX SOC SCREW,M12 x 1.25 x 35mm

3шт.

10

87681967

SPACER

3шт.

11

87330360

THRUST WASHER

6шт.

12

87330366

ROLLER BEARING,41.4mm ID x 51.4mm OD x 35.5mm W

3шт.

13

87330345

IDLER PINION

3шт.
