Запчасти Case IH PUMA 165 CVT (25.108.AA[03]) - VAR - 758046 - FRONT AXLE, SUSPENDED W/BRAKES, SHAFT (25) - FRONT AXLE SYSTEM

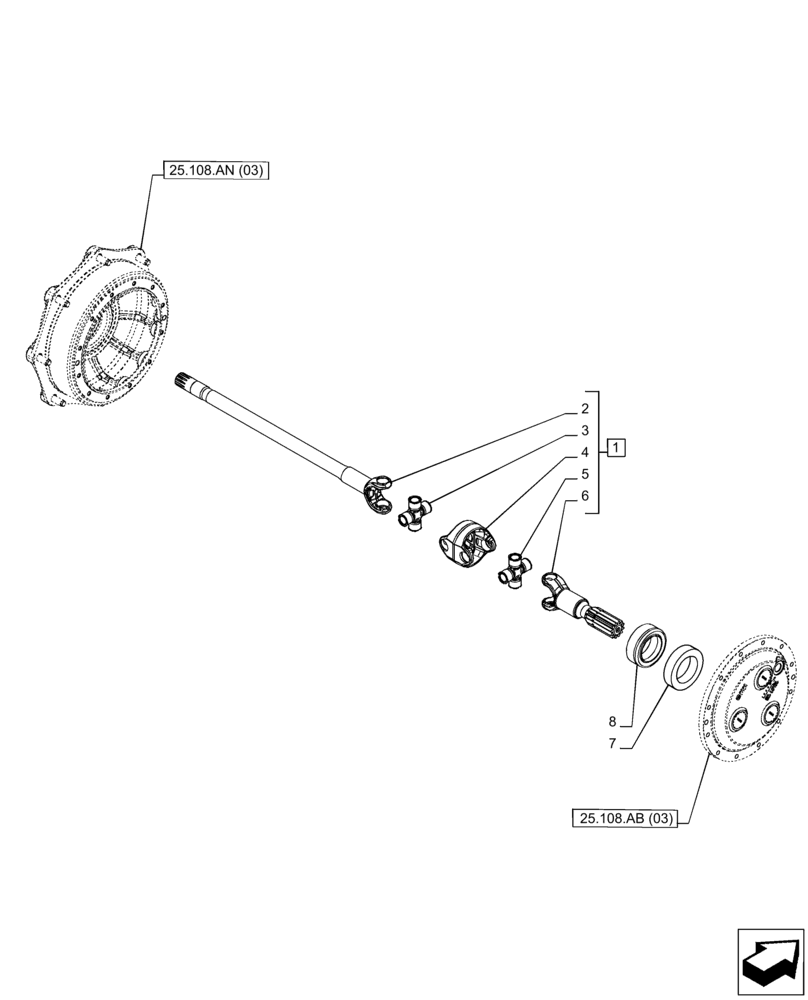

Схема запчастей Case IH PUMA 165 CVT - (25.108.AA[03]) - VAR - 758046 - FRONT AXLE, SUSPENDED W/BRAKES, SHAFT (25) - FRONT AXLE SYSTEM
25.108.ab (03)
1
2
25.108.an (03)
8
6
4
3
7
5

Артикул

Название

Примечание

Количество

1

87743318

SHAFT

RH, ASSY, Incl 2 - 6

1шт.

1

87743319

SHAFT

LH, ASSY, Incl 2 - 6

1шт.

2

87747753

LONG SHAFT FORK,728.00mm

RH

1шт.

2

87747751

LONG SHAFT FORK,708.00mm

LH

1шт.

3

87747761

CIRCLIP

1шт.

4

87747754

YOKE

1шт.

5

47482153

U-JOINT SPIDER,30.15mm Cap Dia, 81.9mm L

1шт.

6

87747757

SHORT SHAFT FORK,233.60mm

1шт.

7

87598114

SPACER,53.00mm ID x 78.00mm OD x 4.00mm

1шт.

8

87397905

OIL SEAL,52.00mm ID x 72.00mm OD x 16.50mm

1шт.

Выбрано товаров: 10
