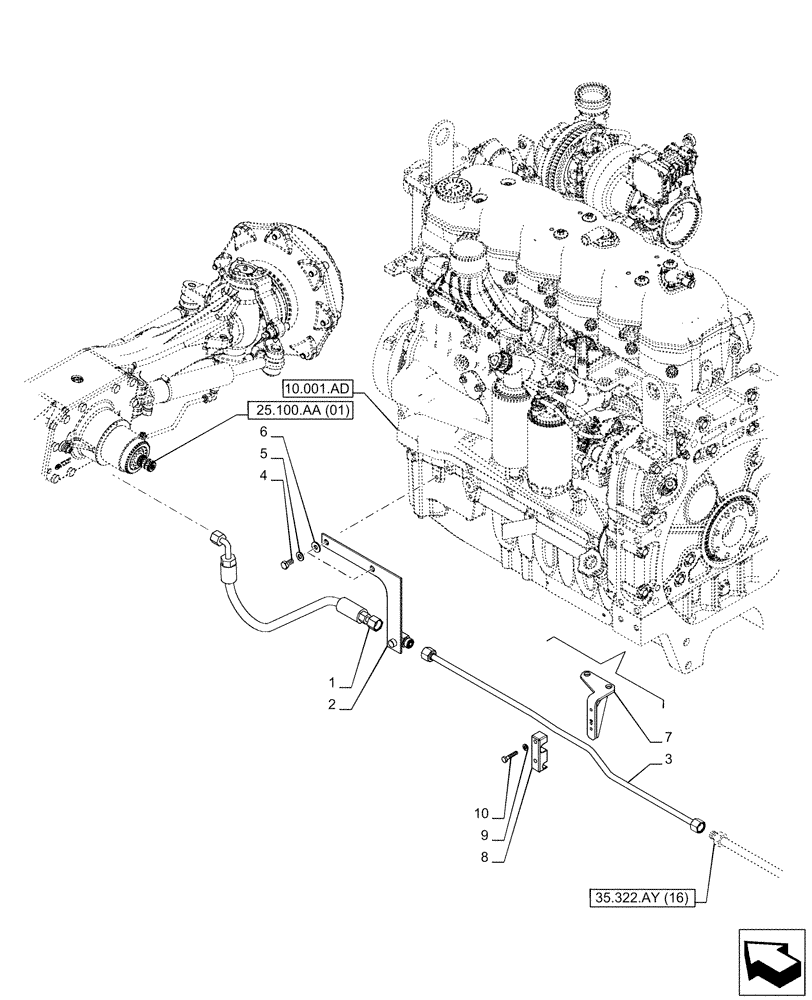

Запчасти Case IH PUMA 165 CVT (25.102.AT[02]) - VAR - 391156 - 4WD FRONT AXLE, DIFFERENTIAL LOCK, LINE (25) - FRONT AXLE SYSTEM

1

87352542

HOSE,550.00mm

1шт.

2

87702718

BRACKET

1шт.

3

87702716

TUBE

1шт.

4

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

3шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

6

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

1шт.

7

47475527

BRACKET

1шт.

8

82029228

CLAMP,2 Hoses

1шт.

9

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

10

120101

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

2шт.
