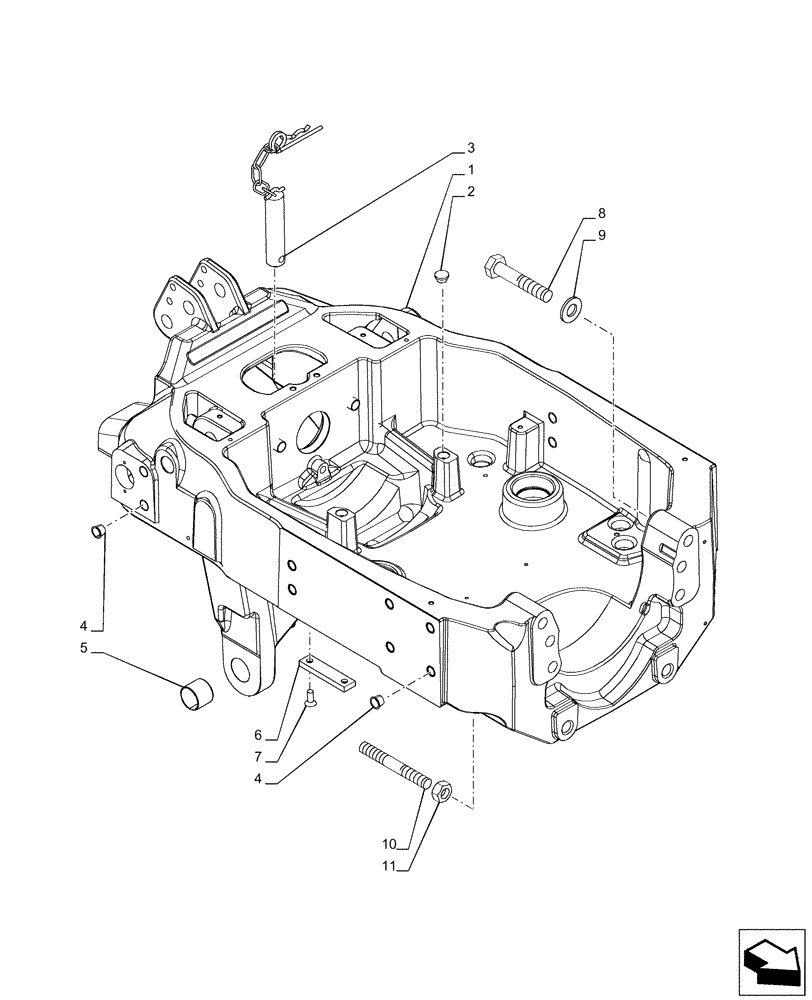

Запчасти Case IH PUMA 165 CVT (25.100.AV[09]) - VAR - 758088, 758089, 758090, 758091, 758092, 758093 - FRONT AXLE SUPPORT, 4WD FRONT AXLE (25) - FRONT AXLE SYSTEM

1

84179062

SUPPORT

1шт.

2

87523187

PLUG,M12 x 1.5

M12 x 1.5

2шт.

3

84336833

HITCH PIN,31.5mm OD x 245mm L

1шт.

4

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

16шт.

5

84278225

BUSHING,40mm ID x 44mm OD x 35mm L

2шт.

6

87361847

SPACER,111mm L x 26mm W x 10mm Thk

2шт.

7

82015433

HEX SOC SCREW,FLAT, M10 x 1.5 x 25mm, Cl 10.9

4шт.

8

82029234

BOLT,Hex, M20 x 1.5 x 125mm, Cl 12.9

6шт.

9

82028022

WASHER,M8 x 1.25 ID x 40mm OD x 9mm Thk, CRLC or HRLC Steel

6шт.

10

87301866

STUD,M20 x 1.5 x 170mm, Cl 10.9

M20

2шт.

11

87312644

NUT,Hex, M20, 1.5 Pitch, 16mm High, Gr R12

2шт.
