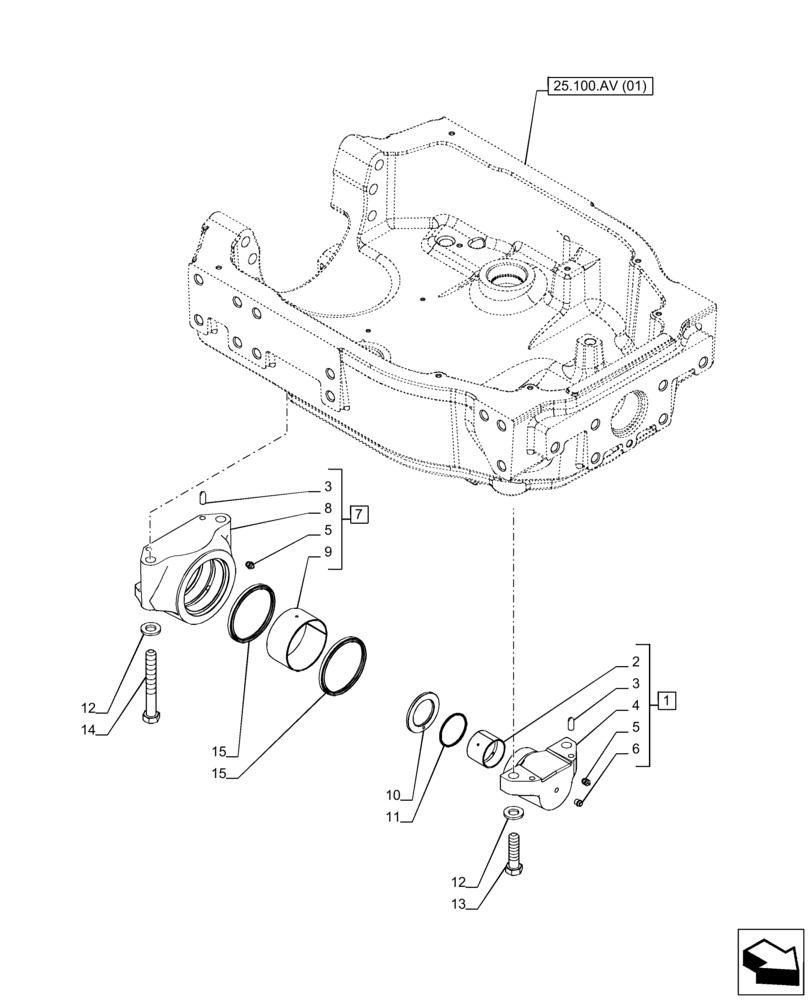

Запчасти Case IH PUMA 165 CVT (25.100.AV[04]) - VAR - 391156 - FRONT AXLE SUPPORT, TRUNNION (25) - FRONT AXLE SYSTEM

1

87311589

TRUNNION

Front, ASSY, Incl 2, 3 (Q.ty 2), 4, 5 (Q.ty 1), 6

1шт.

2

5101112

BUSHING,52.72mm ID x 57.16mm OD x 42mm L

1шт.

3

10837710

DOWEL,M10 x 25

4шт.

4

NSS

NOT SOLD SEPARAT

Trunnion, Incl in 1

1шт.

5

13407211

LUBE NIPPLE,M10 x 1

2шт.

6

13411117

VALVE PRESSURE RELIE,M10, Black

1шт.

7

87311603

TRUNNION

Rear, ASSY, Incl 3 (Q.ty 2), 5 (Q.ty 1), 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Trunnion, Incl in 7

1шт.

9

5129385

BUSHING,99.15mm ID x 103.7mm OD x 52mm L

1шт.

10

5140456

RING,52.8mm ID x 80mm OD x 5mm Thk

1шт.

11

14471380

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.

12

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

4шт.

13

15222234

BOLT,Hex, M18 x 70mm, Cl 10.9, Full Thd

2шт.

14

15223534

BOLT,Hex, M18 x 140mm, Cl 10.9, Full Thd

2шт.

15

5188607

SEAL,115.5mm ID x 130mm OD x 7.5mm Thk

2шт.
