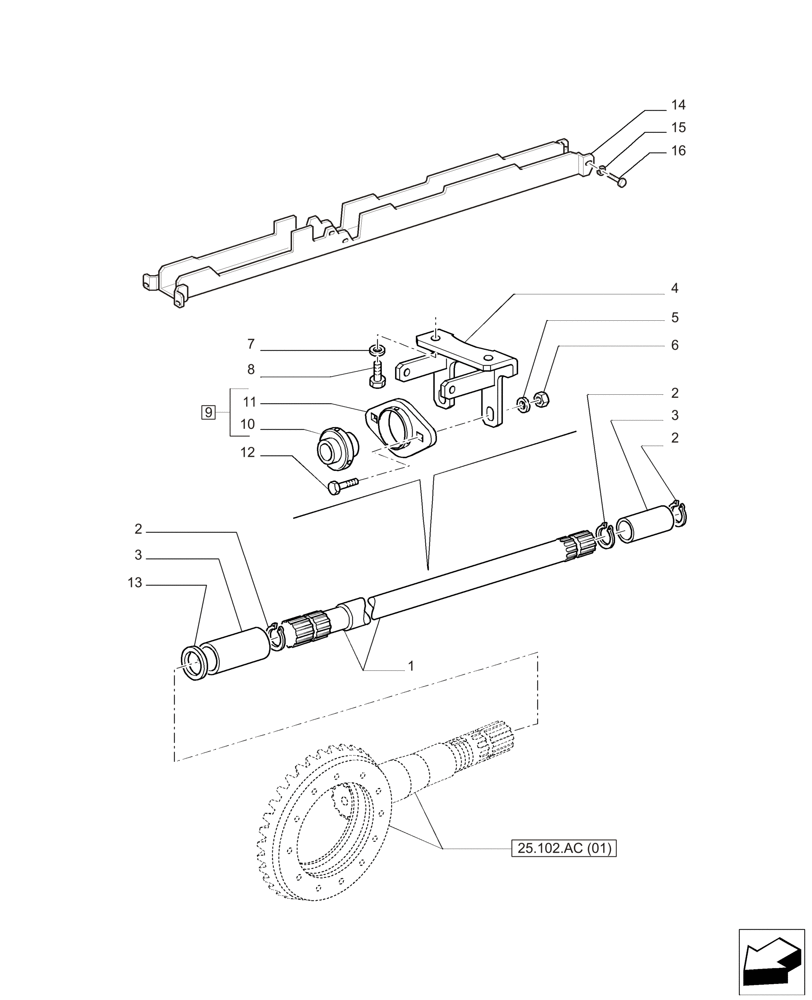

Запчасти Case IH PUMA 165 CVT (23.314.AB[08]) - VAR. - 391216 - 4WD ENGAGEMENT CLUTCH CONTROL - SPLINED HUB, CVT (23) - FOUR WHEEL DRIVE SYSTEM

1

84486150

DRIVE SHAFT,69.799mm D, 742mm L

1шт.

2

5109282

CIRCLIP,M35, Ext x 2.50 Thk

3шт.

3

4994076

SLEEVE,12T

2шт.

3

47135384

SPLINED COUPLING,12T

2шт.

4

5170368

SUPPORT

1шт.

5

11198579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.9mm Thk

2шт.

6

12164711

NUT,M10 x 1.25, Cl 8

2шт.

7

11197979

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

2шт.

8

15540331

BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

9

5166640

BEARING ASSY

Incl 10, 11

1шт.

10

5174571

FLANGED BEARING,35mm ID

1шт.

11

5174572

KIT

1шт.

12

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

13

5118722

SHIM,34.6mm ID x 48mm OD x 1mm Thk

1шт.

13

5118723

SHIM,34.6mm ID x 48mm OD x 1.2mm Thk

1шт.

13

5118724

SHIM,34.60mm ID x 48.00mm OD x 1.50mm T

1шт.

13

5118725

SHIM,34.6mm ID x 48mm OD x 1.8mm Thk

1шт.

13

4994066

SHIM,34.60mm ID x 48.00mm OD x 2.20mm T

1шт.

13

4994067

SHIM,34.60mm ID x 48.00mm OD x 2.50mm T

1шт.

13

4994068

SHIM,34.60mm ID x 48.00mm OD x 2.80mm T

1шт.

13

4994069

SHIM,34.60mm ID x 48.00mm OD x 3.00mm T

1шт.

13

4994070

SHIM,34.60mm ID x 48.00mm OD x 3.30mm T

1шт.

13

4994072

SHIM,34.60mm ID x 48.00mm OD x 4.00mm T

1шт.

13

4994073

SHIM,34.60mm ID x 48.00mm OD x 4.30mm T

1шт.

14

47398513

SHIELD

1шт.

15

11197879

BELLEVILLE WASHER,8.4mm ID x 16mm OD x 2.2mm Thk

6шт.

16

86624003

BOLT,Hex, M8 x 14mm, Cl 8.8, Full Thd

6шт.
