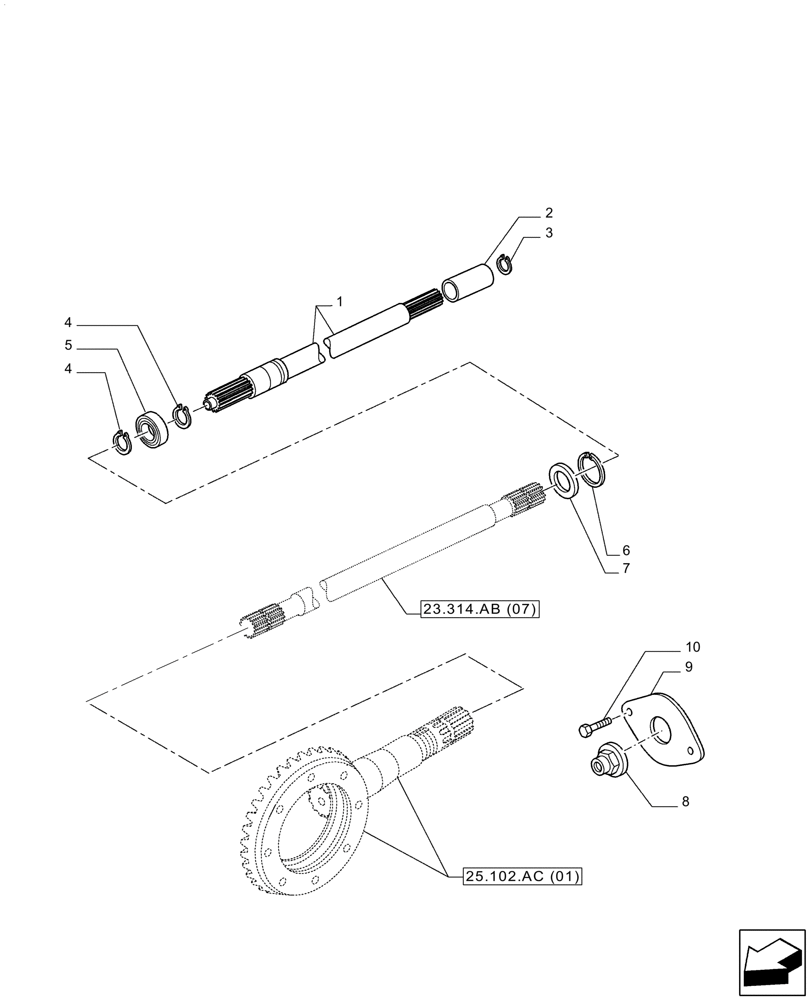

Запчасти Case IH PUMA 165 CVT (23.314.AB[06]) - VAR - 391138, 758022 - PROPELLER SHAFT, CVT (23) - FOUR WHEEL DRIVE SYSTEM

1

87599007

SHAFT,953mm L

1шт.

2

5172239

SPLINED COUPLING,12T

1шт.

3

11058876

SNAP RING,M30, Int

1шт.

4

11068876

SNAP RING,M40, Ext

2шт.

5

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

6

11061976

SNAP RING,M80, Int

1шт.

7

47134818

SEAL,40mm ID x 80mm OD x 15mm Thk

1шт.

8

5111953

NUT,M24 x 1.5

1шт.

9

47135527

FLANGE

1шт.

10

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.
