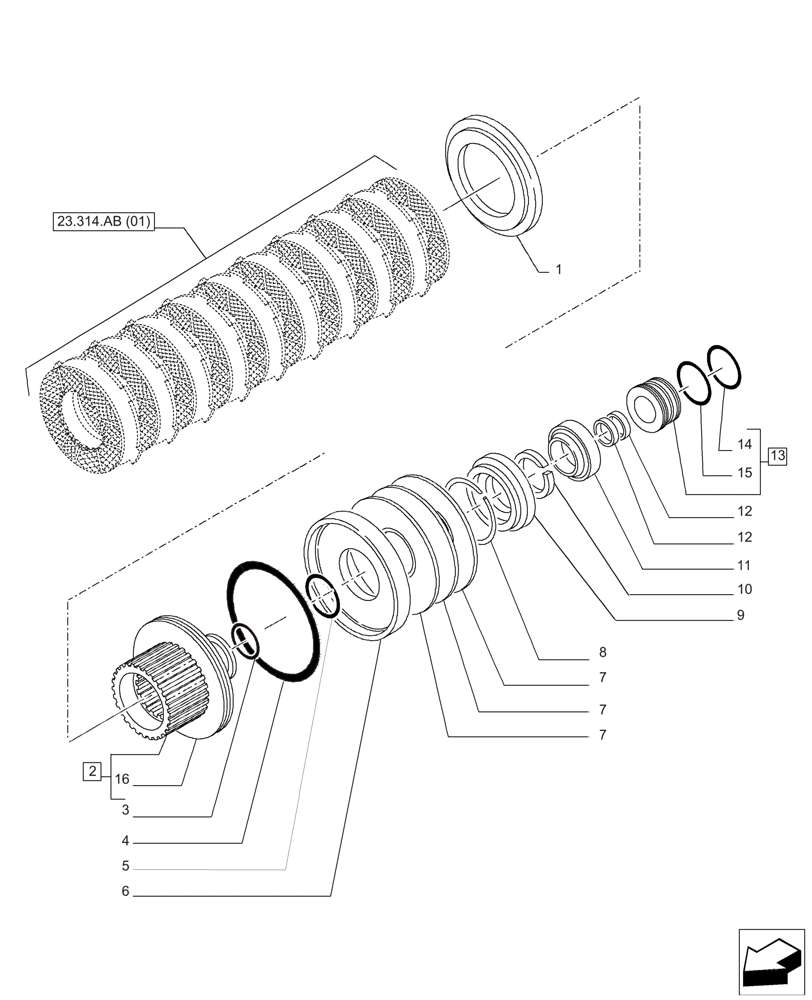

Запчасти Case IH PUMA 165 CVT (23.314.AB[03]) - VAR - 392138, 332342 - DRIVE HYDRAULIC CLUTCH, HUB, CVT (23) - FOUR WHEEL DRIVE SYSTEM

1

5153332

PLATE

1шт.

2

84162193

HUB

1шт.

3

14458780

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1шт.

4

14462080

O-RING,0.103" Thk x 5.737" ID, -162, Cl 5, 75 Duro

1шт.

5

14459480

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

1шт.

6

5153331

PISTON

1шт.

7

5160408

BELLEVILLE SPRING

3шт.

8

5144584

CIRCLIP

1шт.

9

87488655

THRUST WASHER

1шт.

10

4977442

HALF-RING

2шт.

11

26799950

TAPERED BEARING,35mm ID x 72mm OD x 18.25mm W

1шт.

12

5185502

PISTON RING,28.5mm ID x 32mm OD x 2.1mm Thk

2шт.

13

87372763

MANIFOLD

1шт.

14

9820460

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

1шт.

15

511212

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1шт.

16

5153329

DISC,150mm OD x 65mm ID x 9.5mm Thk

1шт.
