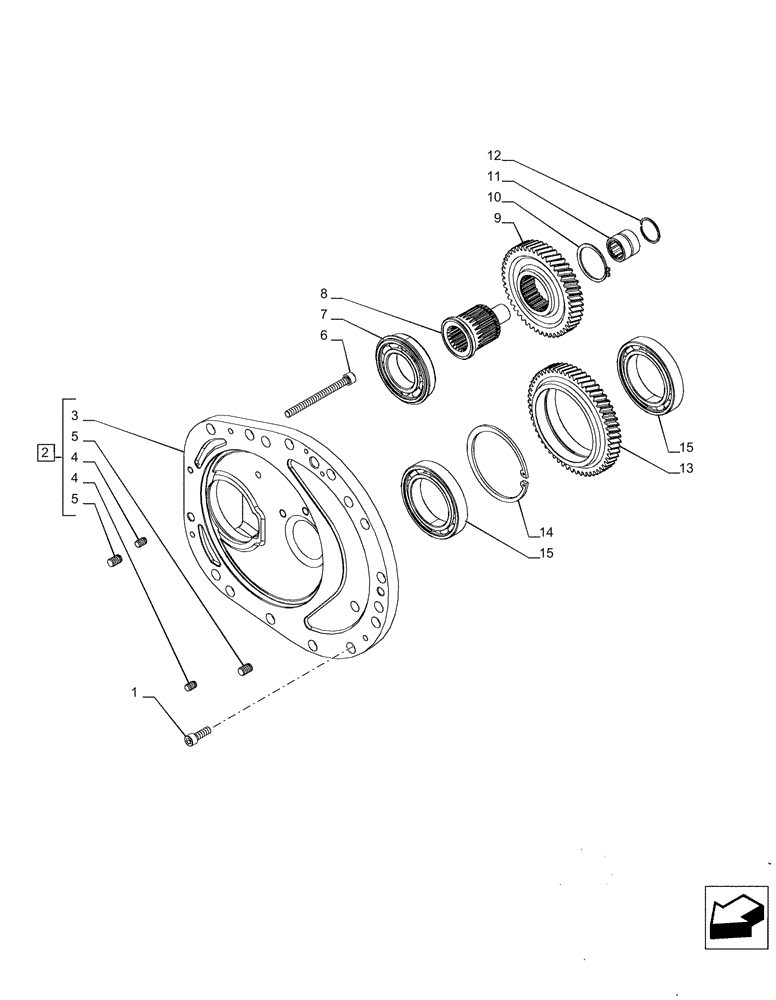

Запчасти Case IH PUMA 165 CVT (21.507.AD[02]) - VAR - 391138, 758022 - TRANSMISSION, FLANGE, CVT (21) - TRANSMISSION

1

14307521

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

11шт.

2

84474926

FLANGE

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Flange, Incl in 2

1шт.

4

10839710

DOWEL,M10 x 15.00mm

2шт.

5

10839810

DOWEL,12mm OD x 18mm L

M12 x 18

2шт.

6

14360221

SCREW,M10 x 1.25 x 120mm

M10 x 1.25 x 120

2шт.

7

28996350

BALL BEARING,55.00mm x 100.00mm x 21.00mm

1шт.

8

84344107

SHAFT,26T, 23T, 96mm L

Control

1шт.

9

84344105

GEAR,47T

1шт.

10

11069576

SNAP RING,M55, Ext

1шт.

11

87588905

NEEDLE BEARING,25.00mm x 27.00mm x 30.00mm

1шт.

12

87741854

SNAP RING,1.5mm Thk, Int

1шт.

13

87471835

RING GEAR,93T, 61mm L

1шт.

14

11075676

SNAP RING,M115, Int

1шт.

15

87588896

BALL BEARING,75mm ID x 115mm OD x 20mm W

2шт.
