Запчасти Case IH PUMA 165 CVT (21.505.AQ[01]) - VAR - 391138, 758022 - TRANSMISSION CONTROL VALVE (21) - TRANSMISSION

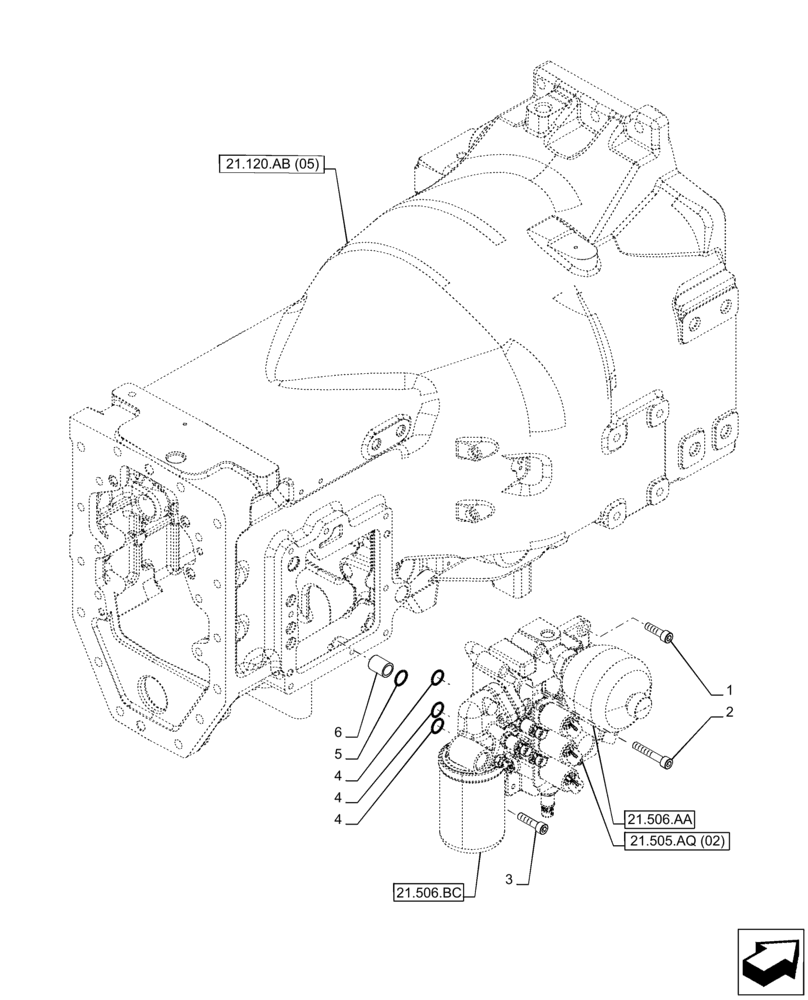

Схема запчастей Case IH PUMA 165 CVT - (21.505.AQ[01]) - VAR - 391138, 758022 - TRANSMISSION CONTROL VALVE (21) - TRANSMISSION
4
3
6
21.506.aa
1
5
4
21.505.aq (02)
21.506.bc
2
21.120.ab (05)
4

Артикул

Название

Примечание

Количество

1

14307621

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

2

14308121

HEX SOC SCREW,M10 x 1.25 x 60mm, Cl 8.8

3шт.

3

14307724

HEX SOC SCREW,M10 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

4

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

3шт.

5

14453380

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

3шт.

6

47574041

UNION,11mm ID x 13mm ID x 14mm L

3шт.

Выбрано товаров: 6
