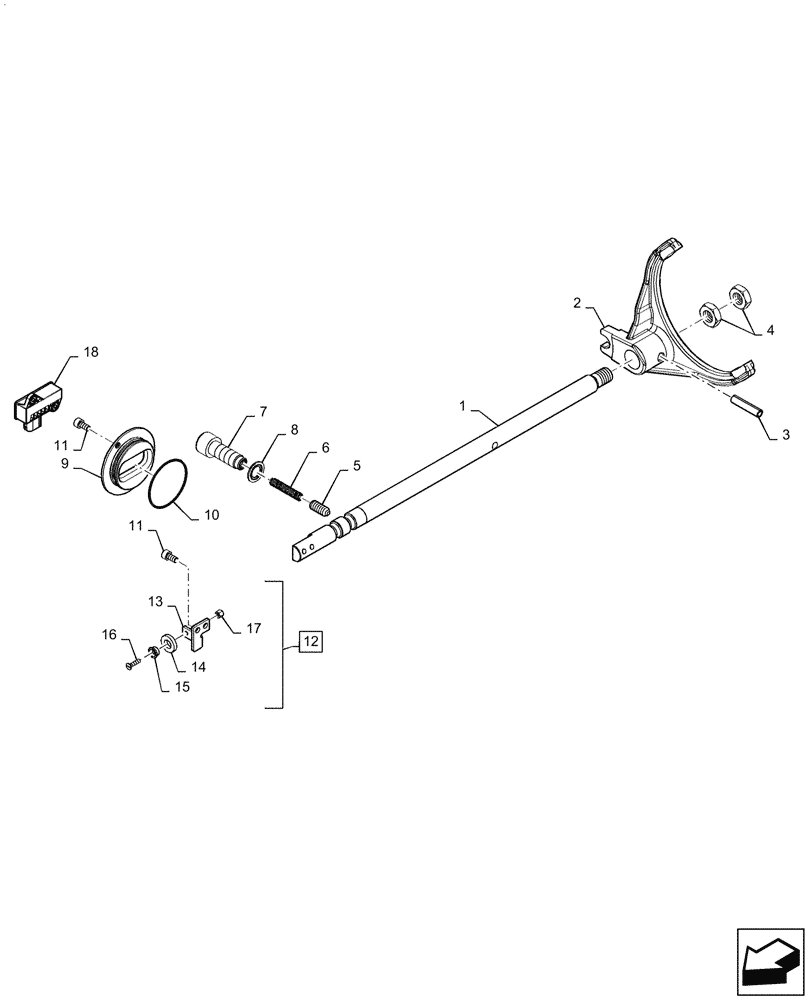

Запчасти Case IH PUMA 165 CVT (21.505.AG) - VAR - 391138, 758022 - TRANSMISSION, GEARSHIFT, CVT (21) - TRANSMISSION

1

84559346

ROD,M16 x 1.5 x 481mm L

1шт.

2

87362963

SHIFTER FORK,144.4mm Int

1шт.

3

13913670

ROLL PIN,M8 x 40, Coiled

1шт.

4

10791411

THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND

2шт.

5

5166394

PAWL,10mm OD x 25mm L

1шт.

6

5166393

SPRING,8mm OD x 43mm L

1шт.

7

87612768

SCREW,M16 x 45mm

M16 x 45

1шт.

8

5167639

SEALING WASHER,13.4mm ID x 24mm OD x 1.5mm Thk

1шт.

9

84181809

HOLDER

1шт.

10

14459680

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

1шт.

11

14305121

HEX SOC SCREW,M6 x 12mm, Cl 8.8

4шт.

12

84406697

HOLDER

ASSY, Incl 13 - 17

1шт.

13

NSS

NOT SOLD SEPARAT

Support, Incl in 12

1шт.

14

NSS

NOT SOLD SEPARAT

Magnet, Incl in 12

1шт.

15

NSS

NOT SOLD SEPARAT

Bushing, Incl in 12

1шт.

16

10352111

SCREW,Slotted Countersunk, M4 x 16mm

1шт.

17

86625075

NUT,M4 x 0.7, Cl 8

1шт.

18

87620263

SENSOR

Magnetic, Position

1шт.
