Запчасти Case IH PUMA 165 CVT (21.152.AA[16]) - VAR - 758012, 758013, 758014, 758015 - TRANSMISSION, GEAR (21) - TRANSMISSION

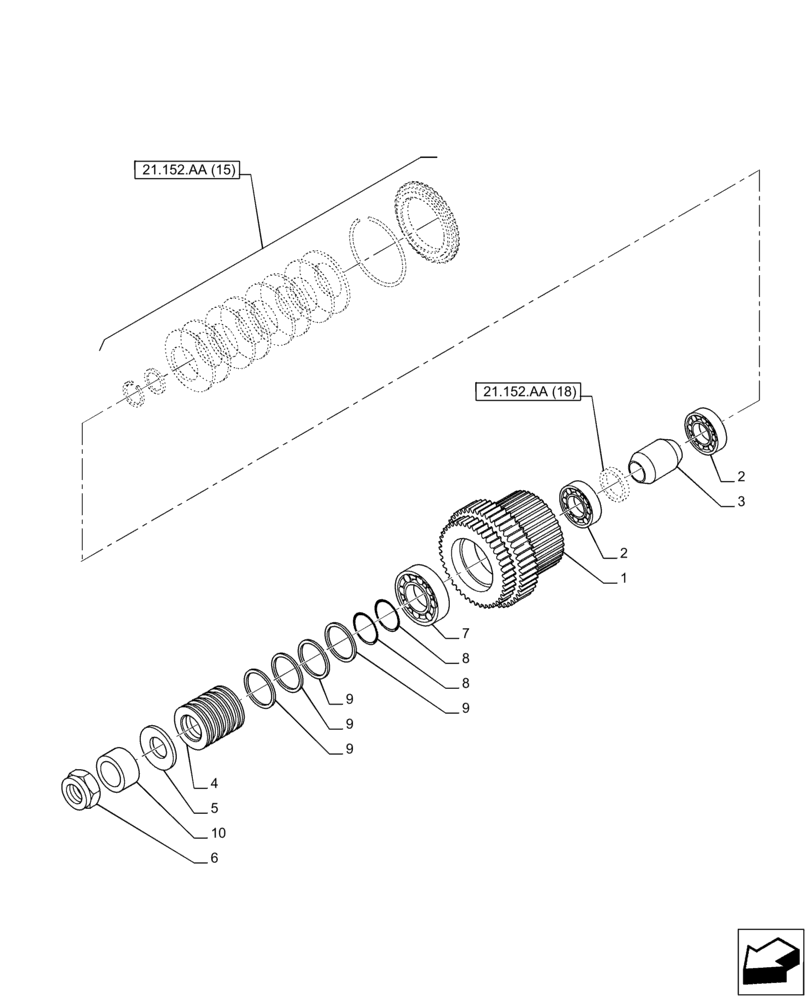

Схема запчастей Case IH PUMA 165 CVT - (21.152.AA[16]) - VAR - 758012, 758013, 758014, 758015 - TRANSMISSION, GEAR (21) - TRANSMISSION
9
21.152.aa (18)
1
2
5
2
9
21.152.aa (15)
3
6
8
9
8
10
7
9
4

Артикул

Название

Примечание

Количество

1

5167826

DRIVEN GEAR,50T, 52T, 52T

1/2 Speed

1шт.

2

24903820

TAPERED BEARING,45 mm ID x 75 mm OD x 20 mm

2шт.

3

5167099

SPACER,45.1mm ID x 56mm OD x 24.5mm L

1шт.

4

5187957

MANIFOLD

1шт.

5

5166037

SPRING,Belleville, 45.25mm OD x 4.5mm Thk

1шт.

6

5147930

RING NUT,M45 x 1.5

1шт.

7

5150900

BEARING, ROLLER, CYL,45mm ID x 85mm OD x 19mm W

1шт.

8

14454781

O-RING,0.07" Thk x 1.614" ID, -30, Cl 7, 75 Duro

2шт.

9

83911795

SEAL,Split, 70.76mm ID x 76.2mm OD x 2.13mm Thk

4шт.

10

5177809

SPACER,45mm ID x 55mm OD x 25.5mm L

1шт.

Выбрано товаров: 10
