(21.148.AC[02]) - VAR - 758023 - TRANSMISSION, REAR, GEARS & SHAFT, BEVEL PINION, MECHANICAL SHIFTABLE, CVT

Запчасти Case IH PUMA 165 CVT (21.148.AC[02]) - VAR - 758023 - TRANSMISSION, REAR, GEARS & SHAFT, BEVEL PINION, MECHANICAL SHIFTABLE, CVT (21) - TRANSMISSION

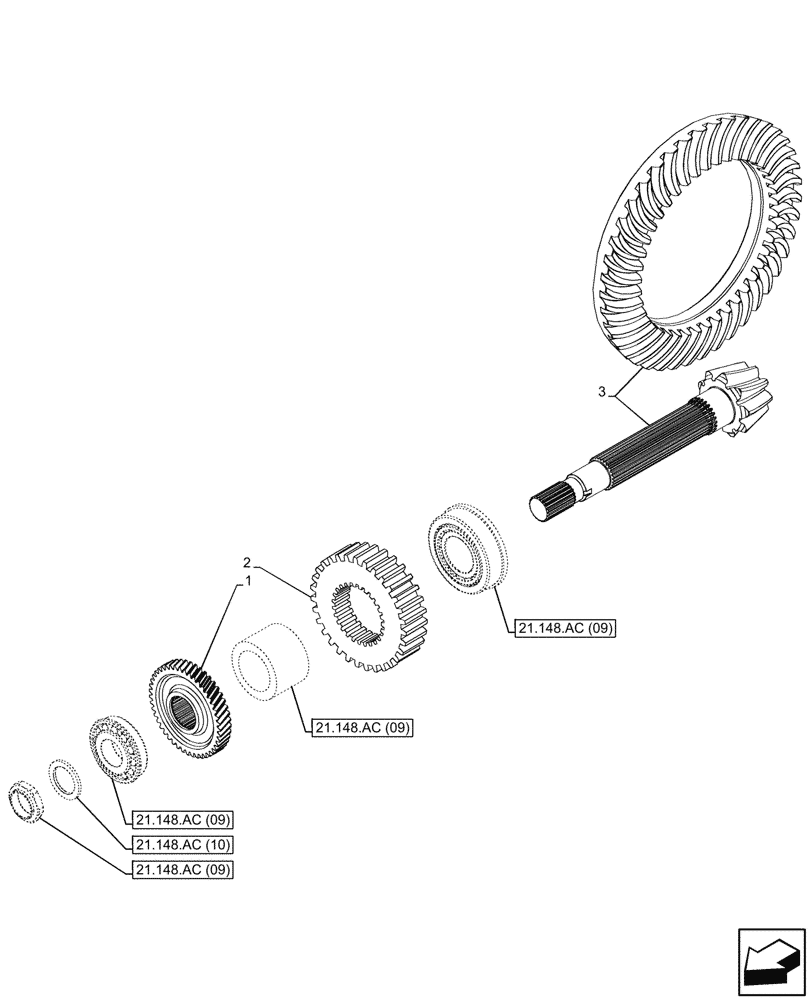

Схема запчастей Case IH PUMA 165 CVT - (21.148.AC[02]) - VAR - 758023 - TRANSMISSION, REAR, GEARS & SHAFT, BEVEL PINION, MECHANICAL SHIFTABLE, CVT (21) - TRANSMISSION
21.148.ac (10)
2
3
1
21.148.ac (09)
21.148.ac (09)
21.148.ac (09)
21.148.ac (09)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87480904

GEAR,Z44

Z 44

1шт.

2

5164890

DRIVING GEAR,Z47

Z 47

1шт.

3

84275420

BEVEL GEAR,9/41 Ratio

Ratio 9/41

1шт.

Выбрано товаров: 0
