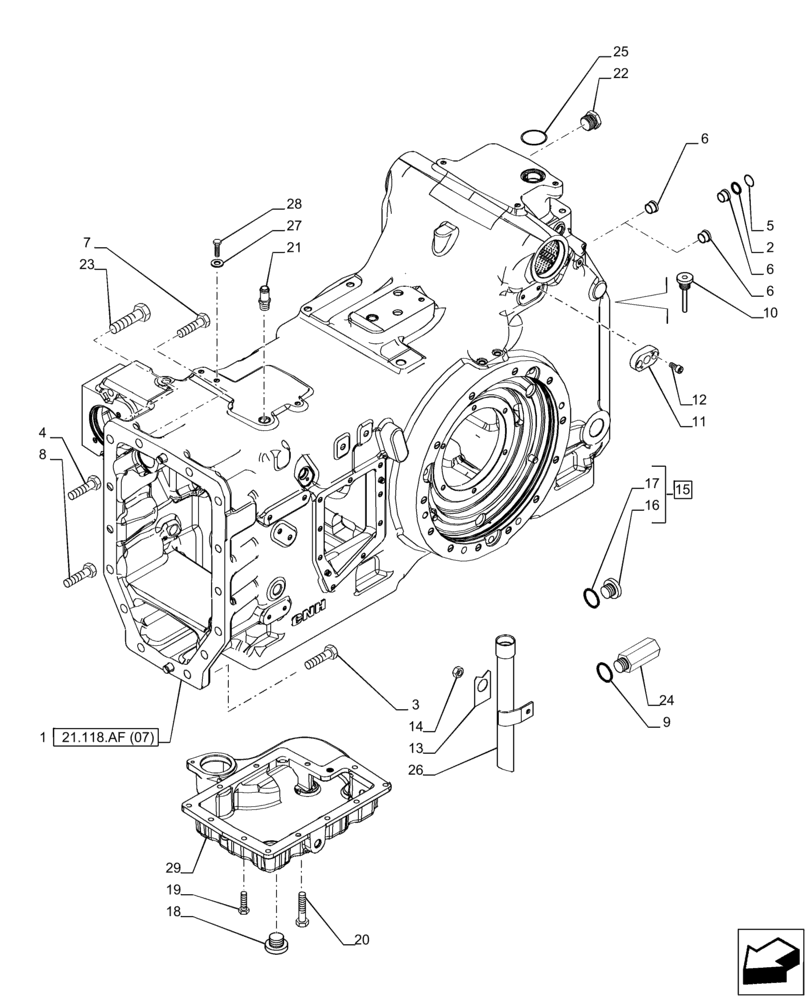

Запчасти Case IH PUMA 165 CVT (21.118.AF[06]) - VAR - 391138, 758022 - TRANSMISSION HOUSING, CVT (21) - TRANSMISSION

1

84396940

HOUSING

ASSY

1шт.

2

300625

SNAP RING,M16, Ext

1шт.

3

15860134

BOLT,Hex, M14 x 1.5 x 50mm, Cl 10.9

3шт.

4

84525187

SCREW,M14 x 50mm

M14 x 50

1шт.

5

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

1шт.

6

5186628

BUSHING,16mm ID x 22mm OD x 14mm L

3шт.

7

15840534

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

6шт.

8

84525340

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9

M16 x 1.5 x 50

2шт.

9

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

10

84395528

HYD TUBE

1шт.

11

47132374

SPACER

1шт.

12

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

13

14198700

LOCKING PLATE,M8

1шт.

14

16100824

NUT,M8, Cl 10

1шт.

15

5185747

PLUG,1"13/16-12

ASSY, Incl 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

Plug, Incl in 15

1шт.

17

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

18

10119511

PLUG,M33 x 2 x 16, Cl5.8

1шт.

19

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

9шт.

20

15971424

BOLT,Hex, M10 x 1.25 x 80mm, Cl 8.8

3шт.

21

82894853

FITTING,69 D x 3/16"-1/8

1шт.

22

83957506

PLUG,3/4"

1шт.

23

15981134

BOLT,Hex, M16 x 1.5 x 60mm, Cl 10.9

2шт.

24

87683202

PLUG,Hex, M16 x 1.5 x M8 x 1.25

1шт.

25

14458780

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1шт.

26

87376006

HYD TUBE,295 mm L

1шт.

27

14499521

WASHER,10.5mm ID x 18mm OD x 2mm Thk

10.5 x 18 x 2

1шт.

28

10857221

BOLT,Hex, M10 x 12mm, Cl 8.8, Full Thd

1шт.

29

84497047

HOUSING

1шт.
