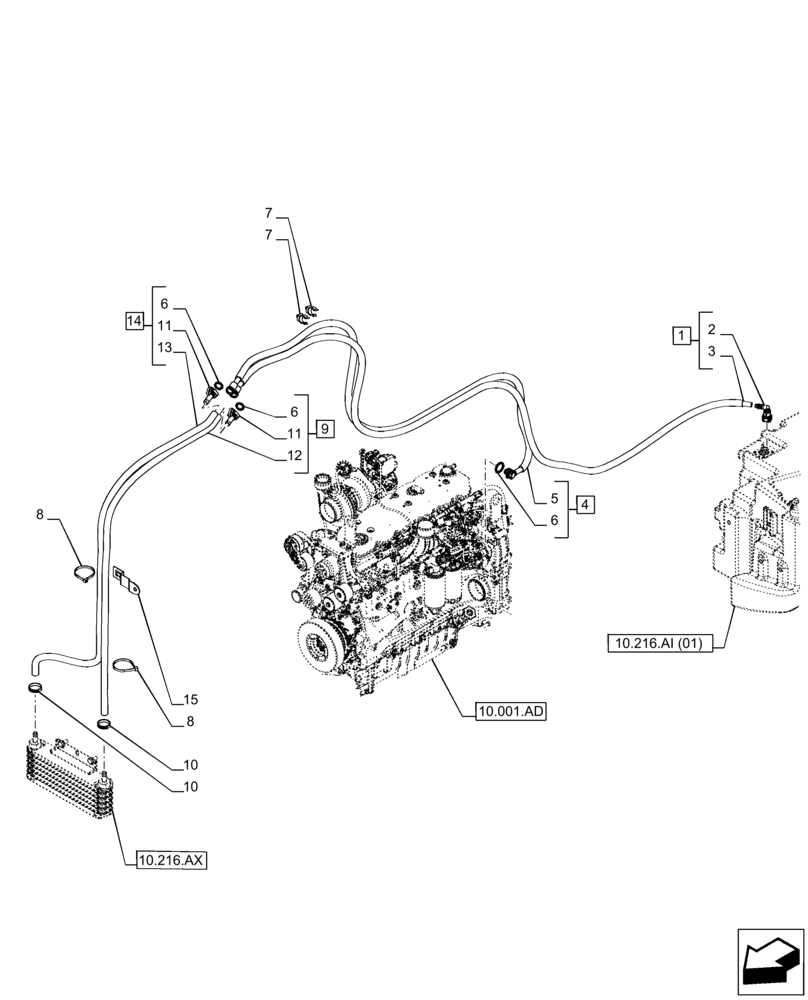

Запчасти Case IH PUMA 165 CVT (10.216.AY) - VAR - 758223, 758235, 758240, 758241, 758250 - FUEL COOLER, LINES (10) - ENGINE
7
6
5
7
11
3
8
10.216.ax
13
9
1
10.001.ad
6
10
8
4
11
12
10
2
14
10.216.ai (01)
6
15
№
Артикул
Название
Примечание
Количество
1
84359922
FUEL HOSE
From Tank to Cooler, Rear, ASSY, Incl 2, 3
1шт.
2
84367132
FITTING,5/16'
1шт.
3
NSS
NOT SOLD SEPARAT
Fuel Hose, Incl in 1
1шт.
4
84359923
FUEL HOSE
From Engine to Cooler, Rear, ASSY, Incl 5, 6
1шт.
5
NSS
NOT SOLD SEPARAT
Fuel Hose, Incl in 4
1шт.
7
47469911
CLIP,16mm ID
2шт.
8
86566989
CABLE TIE,208mm L
6шт.
9
47607388
HOSE
From Engine to Cooler, Front, ASSY, Incl 6, 11, 12
1шт.
10
82039341
CLAMP,12mm - 22mm
2шт.
11
NSS
NOT SOLD SEPARAT
Coupling, Incl in 9, 14
2шт.
12
NSS
NOT SOLD SEPARAT
Fuel Hose, Incl in 9
1шт.
13
NSS
NOT SOLD SEPARAT
Fuel Hose, Incl in 14
1шт.
14
47607390
HOSE
From Tank to Cooler, Front, ASSY, Incl 6, 11, 13
1шт.
15
47610126
BRACKET
1шт.
Выбрано товаров: 15
