(55.024.AA[02]) - VAR - 391161, 391374, 758055, 758935 - TRANSMISSION, HARNESS, CVT, W 140 L/MIN AND 120 L/MIN CHARGE PUMP, W EHRS AND ISOBUS

Запчасти Case IH PUMA 150 CVT (55.024.AA[02]) - VAR - 391161, 391374, 758055, 758935 - TRANSMISSION, HARNESS, CVT, W 140 L/MIN AND 120 L/MIN CHARGE PUMP, W EHRS AND ISOBUS (55) - ELECTRICAL SYSTEMS

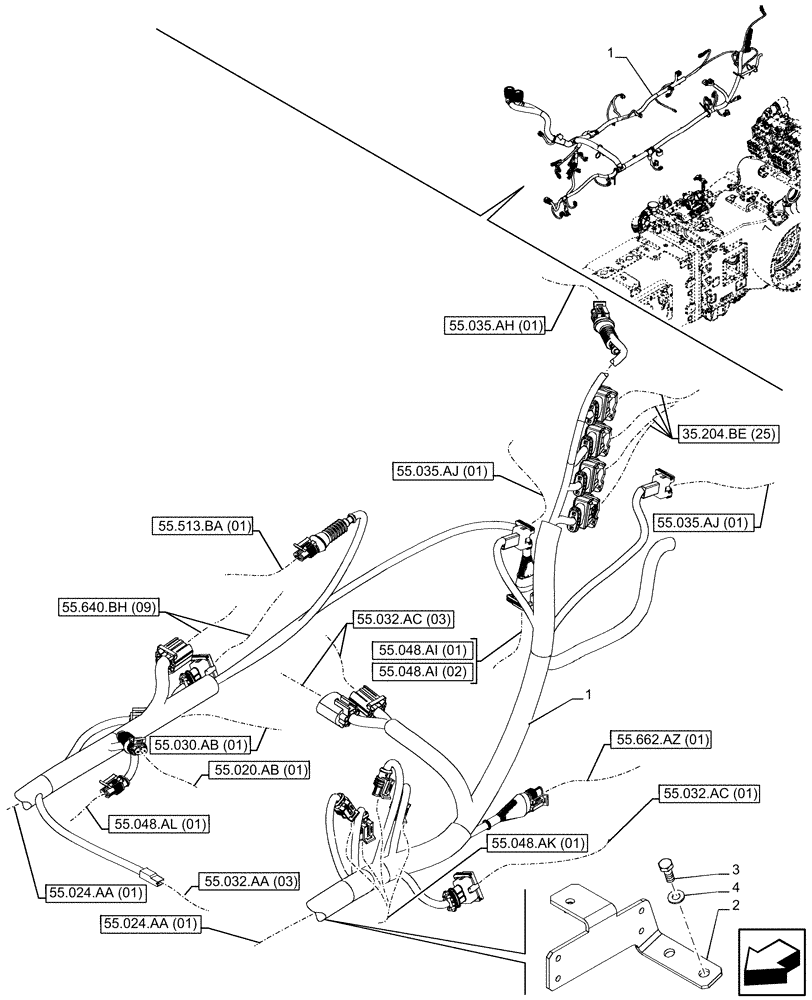

Схема запчастей Case IH PUMA 150 CVT - (55.024.AA[02]) - VAR - 391161, 391374, 758055, 758935 - TRANSMISSION, HARNESS, CVT, W 140 L/MIN AND 120 L/MIN CHARGE PUMP, W EHRS AND ISOBUS (55) - ELECTRICAL SYSTEMS
55.048.al (01)
3
1
4
1
2
55.662.az (01)
55.048.ai (02)
55.020.ab (01)
55.032.ac (03)
55.032.aa (03)
55.032.ac (01)
55.513.ba (01)
55.024.aa (01)
55.024.aa (01)
55.035.aj (01)
55.035.aj (01)
55.048.ak (01)
55.030.ab (01)
35.204.be (25)
55.035.ah (01)
55.640.bh (09)
55.048.ai (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47357335

WIRE HARNESS

Transmission, Harness

1шт.

2

87742627

SUPPORT

1шт.

3

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

4

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.
