Запчасти Case IH PUMA 150 CVT (55.024.AA[01]) - VAR - 391161, 758055, 391374, 758935 - TRANSMISSION, HARNESS, CVT, W 140 L/MIN AND 120 L/MIN CHARGE PUMP, W EHRS AND ISOBUS (55) - ELECTRICAL SYSTEMS

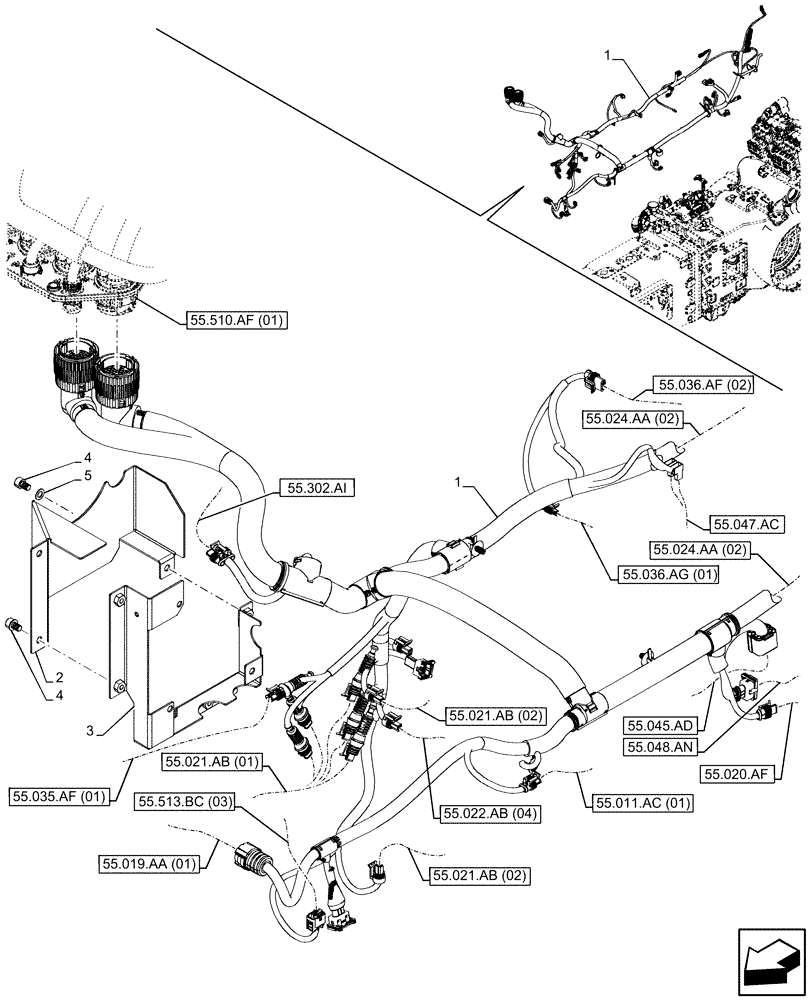

Схема запчастей Case IH PUMA 150 CVT - (55.024.AA[01]) - VAR - 391161, 758055, 391374, 758935 - TRANSMISSION, HARNESS, CVT, W 140 L/MIN AND 120 L/MIN CHARGE PUMP, W EHRS AND ISOBUS (55) - ELECTRICAL SYSTEMS
55.035.af (01)
1
55.047.ac
55.045.ad
1
2
55.020.af
3
5
55.011.ac (01)
4
4
55.048.an
55.510.af (01)
55.036.af (02)
55.036.ag (01)
55.302.ai
55.021.ab (01)
55.021.ab (02)
55.021.ab (02)
55.024.aa (02)
55.024.aa (02)
55.019.aa (01)
55.022.ab (04)
55.513.bc (03)

Артикул

Название

Примечание

Количество

1

47357335

WIRE HARNESS

Transmission, Harness

1шт.

2

47457333

COVER

1шт.

3

84148256

SUPPORT

1шт.

4

14306121

SCREW,Hex, M8 x 1.25 x 12mm L

3шт.

5

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

3шт.

Выбрано товаров: 5
