(41.216.AV[08]) - VAR - 758046 - FRONT AXLE, SUSPENDED W/BRAKES, STEERING CYLINDER, HYD. LINE

Запчасти Case IH PUMA 150 CVT (41.216.AV[08]) - VAR - 758046 - FRONT AXLE, SUSPENDED W/BRAKES, STEERING CYLINDER, HYD. LINE (41) - STEERING

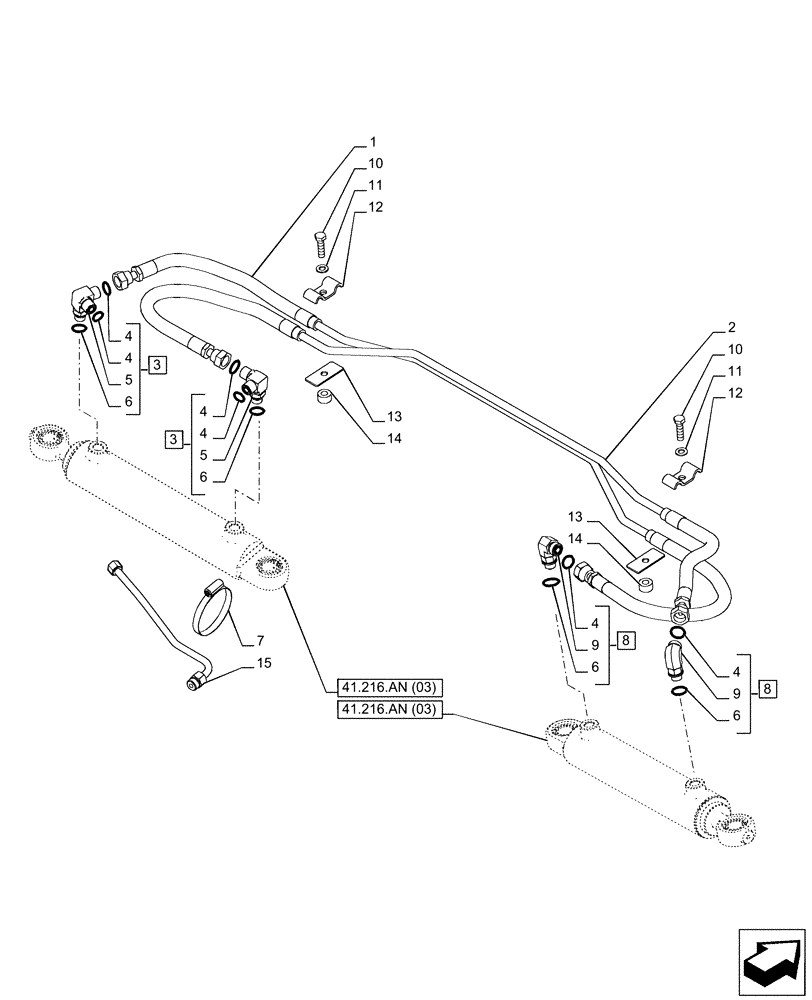

Схема запчастей Case IH PUMA 150 CVT - (41.216.AV[08]) - VAR - 758046 - FRONT AXLE, SUSPENDED W/BRAKES, STEERING CYLINDER, HYD. LINE (41) - STEERING
41.216.an (03)
13
5
4
1
6
4
3
9
5
4
8
9
10
11
12
8
7
10
14
15
6
4
12
4
11
14
4
6
6
3
13
2
41.216.an (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47136888

FLEXIBLE HOSE,10.00mm OD x 1450.00mm

RH

1шт.

2

47136898

FLEXIBLE HOSE,10.00mm OD x 1450.00mm

LH

1шт.

3

5188443

90 ELBOW

ASSY, Incl 4 (Q.ty 2), 5, 6 (Q.ty 1)

2шт.

4

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

6шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

6

14437785

O-RING,11.3mm ID x 2.4mm

4шт.

7

13000990

COLLAR,60mm - 80mm, Worm Gear

1шт.

8

47127165

90 ELBOW

ASSY, Incl 4 (Q.ty 1), 6 (Q.ty 1), 9

2шт.

9

NSS

NOT SOLD SEPARAT

Elbow, Incl in 8

1шт.

10

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

11

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

12

5188504

BRACKET

Upper

2шт.

13

5188503

BRACKET

Lower

2шт.

14

13605811

SPACER,8.50mm ID x 18.00mm OD x 10.00mm, STL, ZND

2шт.

15

87517475

HYD TUBE,10.00mm OD x 228.00mm, 50.00mm L

1шт.
