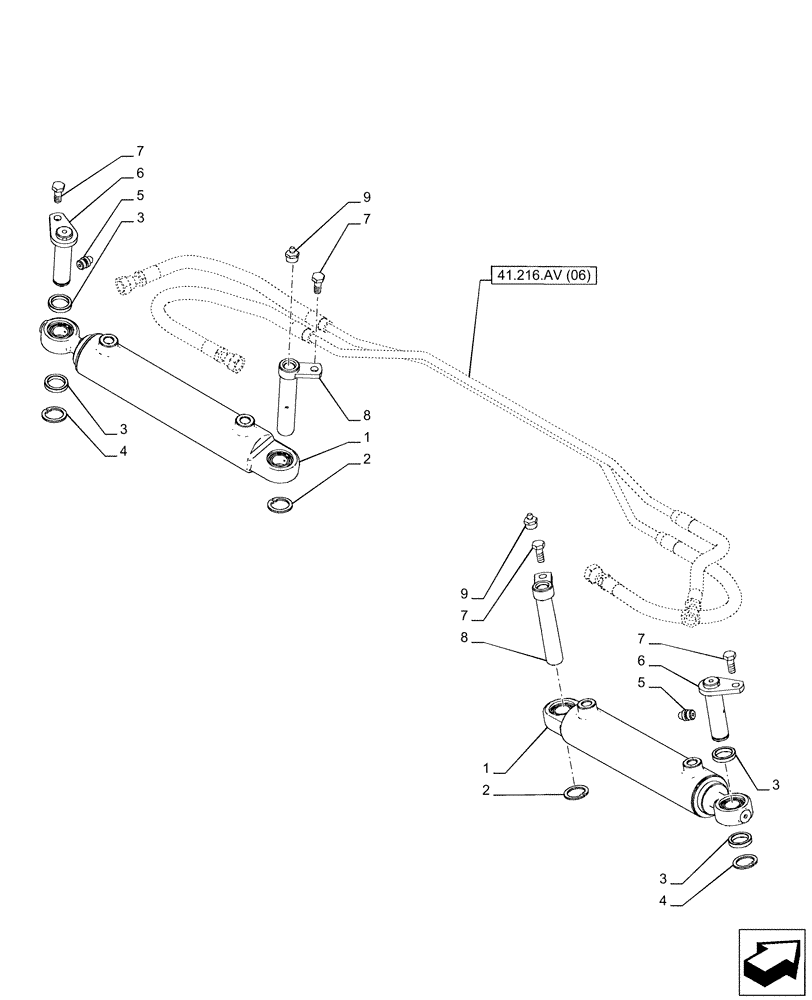

Запчасти Case IH PUMA 150 CVT (41.216.AN[03]) - VAR - 758046 - FRONT AXLE, SUSPENDED W/BRAKES, STEERING CYLINDER (41) - STEERING

1

87546274

SERVO STEERING CYL

2шт.

2

5111576

SPACER,25.5mm ID x 34mm OD x 11mm L

2шт.

3

5111573

SPACER,25.5mm ID x 34mm OD x 5.9mm L

4шт.

4

11067376

SNAP RING,M25, Ext

2шт.

5

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

6

5171707

PIN,24.97mm OD x 91mm L

Rod

2шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

8

5198013

PIN,24.97mm OD x 100mm L

Body

2шт.

9

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.
