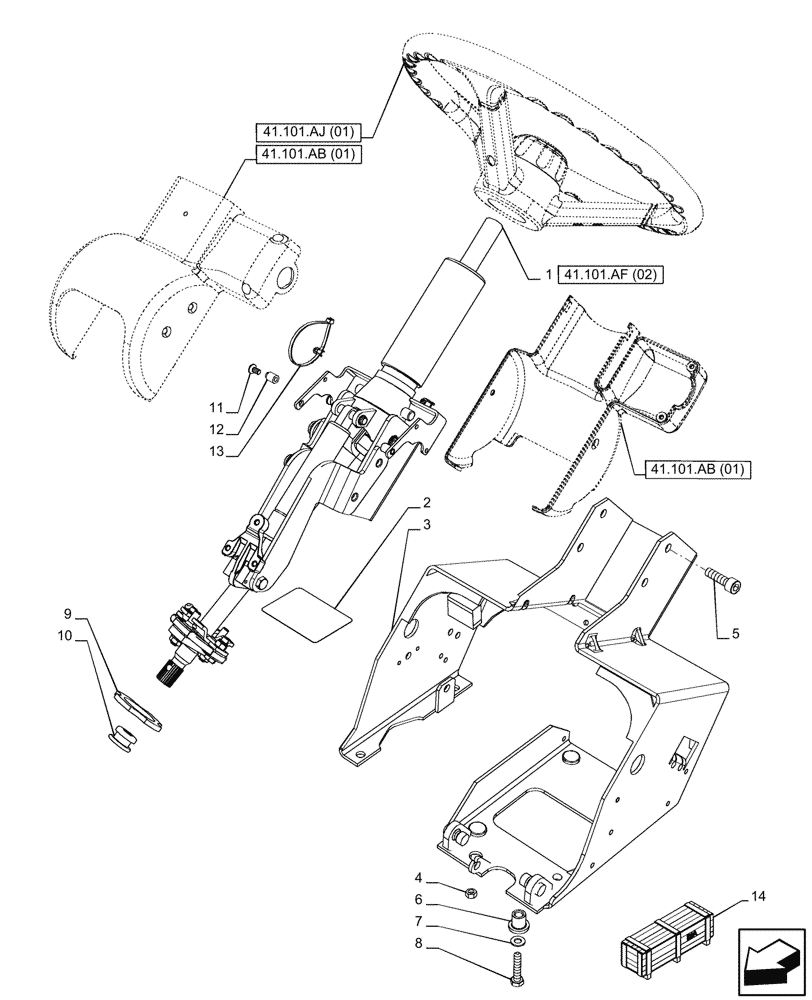

Запчасти Case IH PUMA 150 CVT (41.101.AF[01]) - VAR - 391347, 758802, 758803, 758804, 758805, 758806, 758807, 758871 - STEERING COLUMN (41) - STEERING

1

47383940

STEERING COLUMN,Tilting, Telescoping

1шт.

2

82004409

DECAL

1шт.

3

87579189

SUPPORT

1шт.

4

100016

NUT,M10 x 1.5, Cl 8

2шт.

5

87028324

HEX SOC SCREW,BTN HD, M10 x 1.5 x 20mm, Cl 8.8

4шт.

6

82027074

SPACER,20mm ID x 30mm OD x 25mm L

6шт.

7

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

8

11107231

SCREW,Hex, M10 x 50mm, Cl 10.9

4шт.

9

81873344

RUBBER INSULATOR

1шт.

10

82009429

ISOLATOR

4шт.

11

260-1436

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/8"

1шт.

12

47056773

RETAINER COLLAR,5mm ID x 19.1mm L x 9.5mm W

1шт.

13

14560287

CABLE TIE,207.00mm L

1шт.

14

710070384

DIA KIT, TRACTOR

Autoguidance Fitment, Incl 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

14

710070404

DIA KIT, TRACTOR

Autoguidance Fitment, Incl 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

14

710070424

DIA KIT, TRACTOR

Autoguidance System, Incl 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
