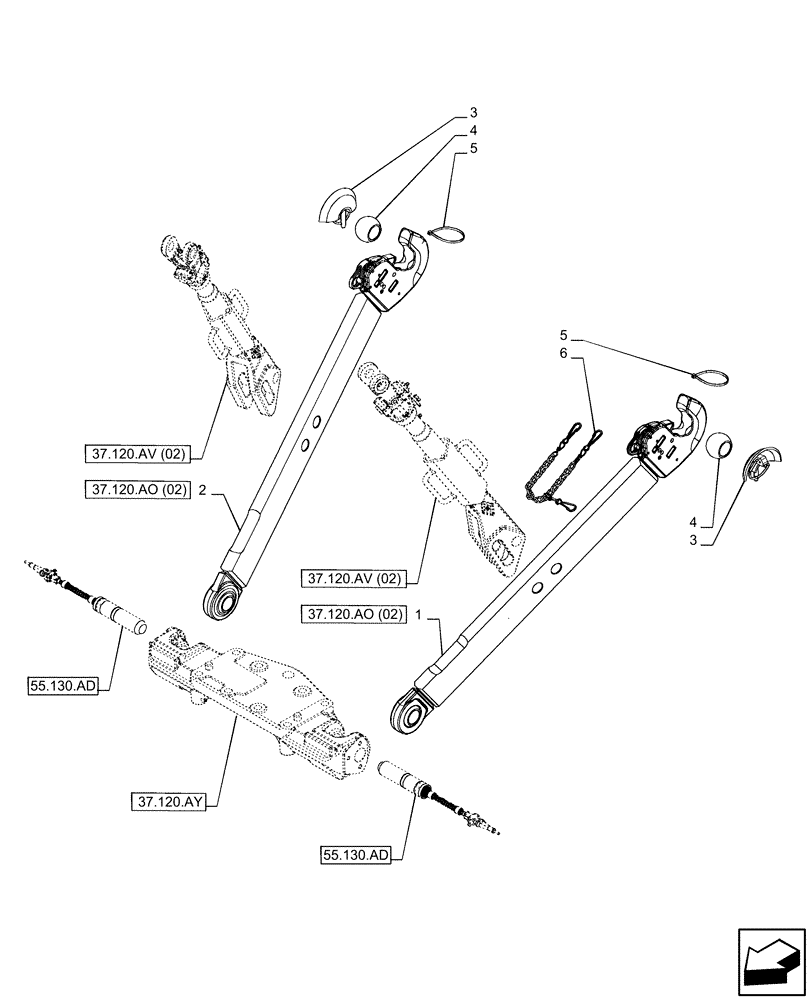

Запчасти Case IH PUMA 150 CVT (37.120.AO[07]) - VAR - 758071, 758076 - 3 POINT HITCH, LOWER LINK (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

87379319

LOWER LINK

ASSY, LH

1шт.

2

87379317

LOWER LINK

ASSY, RH

1шт.

3

5130779

ECCENTRIC,11mm OD, Shaft Diameter 29.00mm

Shaft Diameter 29.00mm

2шт.

3

5130780

ECCENTRIC,15.5mm OD, Shaft Diameter 37.00mm

15.5mm OD Shaft Diameter 37.00mm

2шт.

4

44017710

BUSHING,37mm ID x 64mm OD x 44.7mm L

2шт.

4

44017819

BUSHING,28.7mm ID x 64mm OD x 44.7mm L

2шт.

5

5116063

ROPE,4500mm L

1шт.

6

14560287

CABLE TIE,207.00mm L

2шт.

1

87377617

LOWER LINK

ASSY, LH

1шт.

2

87377616

LOWER LINK

ASSY, RH

1шт.

3

5130779

ECCENTRIC,11mm OD, Shaft Diameter 29.00mm

Shaft Diameter 29.00mm

2шт.

3

5130780

ECCENTRIC,15.5mm OD, Shaft Diameter 37.00mm

15.5mm OD Shaft Diameter 37.00mm

2шт.

4

44017710

BUSHING,37mm ID x 64mm OD x 44.7mm L

2шт.

4

44017819

BUSHING,28.7mm ID x 64mm OD x 44.7mm L

2шт.

5

14560287

CABLE TIE,207.00mm L

2шт.

6

5116063

ROPE,4500mm L

1шт.
