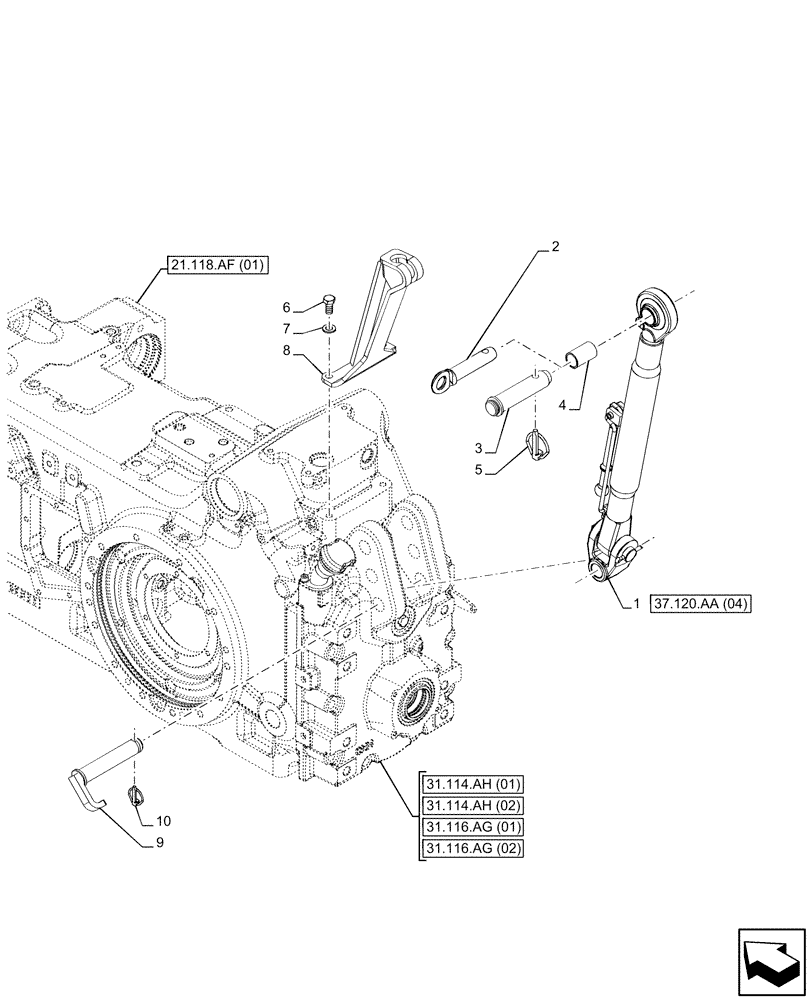

Запчасти Case IH PUMA 150 CVT (37.120.AA[03]) - VAR - 758074, 758079 - 3 POINT HITCH, TOP LINK (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84555884

UPPER LINK

ASSY

1шт.

2

822483

PIN,25.5mm OD x 137mm L

25.5mm OD x 137mm L

1шт.

3

44015196

PIN,31.75mm OD x 146mm L

31.75mm OD x 146mm L

1шт.

4

47123097

BUSHING,25.7mm ID x 32mm OD x 51mm L

1шт.

5

5166585

LOCK PIN,11mm OD

1шт.

6

15540321

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

7

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

8

84414292

BRACKET

1шт.

9

5191449

PIN,27.9mm OD x 152mm L

Valid for 540/1000 PTO Var. 758031

1шт.

9

47133787

PIN,27.9mm OD x 175mm L

1шт.

Valid for 540/540E/1000 PTO Var. 391139, or 540/540E/1000 Ground Speed PTO Var. 758023, or 540E/1000/1000E PTO Var. 758024

1шт.

10

82014909

LOCK PIN,5.5mm OD

1шт.
