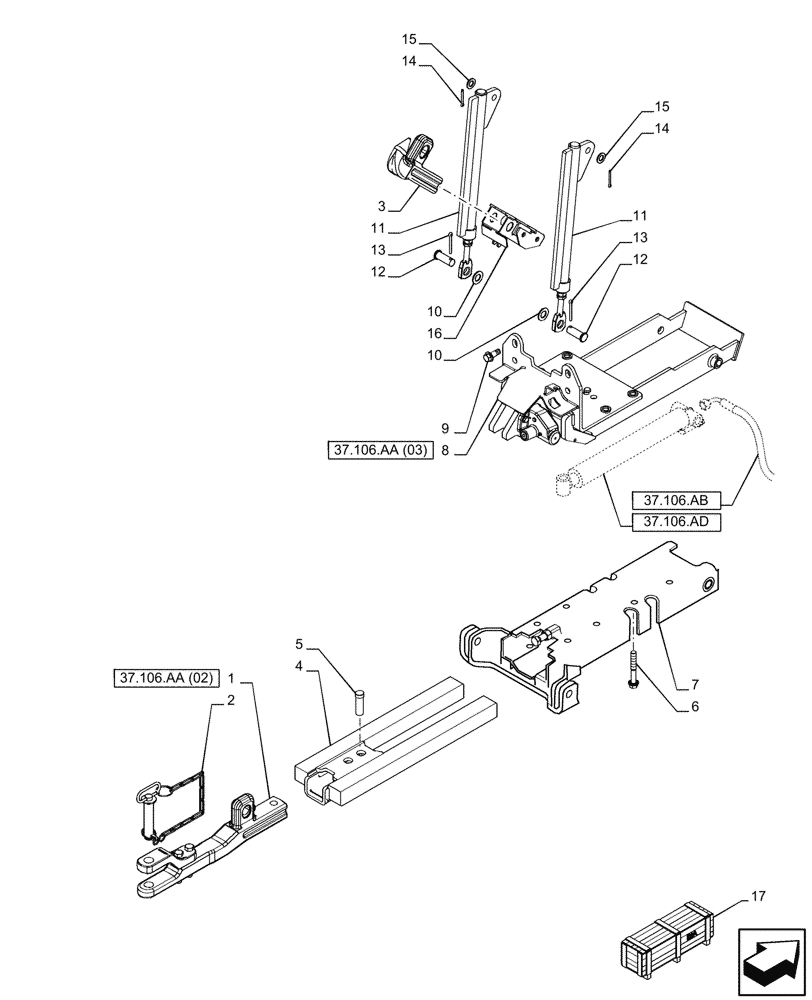

Запчасти Case IH PUMA 150 CVT (37.106.AA[01]) - VAR - 758113 - HYDRAULIC TOW HOOK (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47403751

DRAWBAR

1шт.

2

82025933

PIN,32mm OD x 180mm L

1шт.

3

84351317

HOOK

1шт.

4

47437754

DRAWBAR FRAME

1шт.

5

82036199

PIN,30mm OD x 87mm L

2шт.

6

47679867

SCREW,M18 x 1.5 x 135mm L

4шт.

7

84351464

HITCH

1шт.

8

47629751

HITCH

1шт.

9

82018940

BOLT,Flng, M18 x 1.5 x 45mm, Cl 12.9

4шт.

10

83908648

WASHER,25.65mm ID x 46.43mm OD x 3.18mm Thk

2шт.

11

82036641

LIFTING ROD

2шт.

12

82036627

PIN,25mm OD x 70mm L

2шт.

13

130017

COTTER PIN,M8 x 63

2шт.

14

10797801

COTTER PIN,M6.3 x 50.00mm

2шт.

15

14497101

WASHER,M20 x 37 x 3

2шт.

16

84390563

SUPPORT

1шт.

16

84227334

SUPPORT

1шт.

Valid for 7.175 models only

1шт.

17

710086054

DIA KIT, TRACTOR

Hydraulic Push Back Hitch (EDC - 80mm External Rams), Incl 1 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

710086064

DIA KIT, TRACTOR

Hydraulic Push Back Hitch (EDC - 80mm External Rams), Incl 1 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
