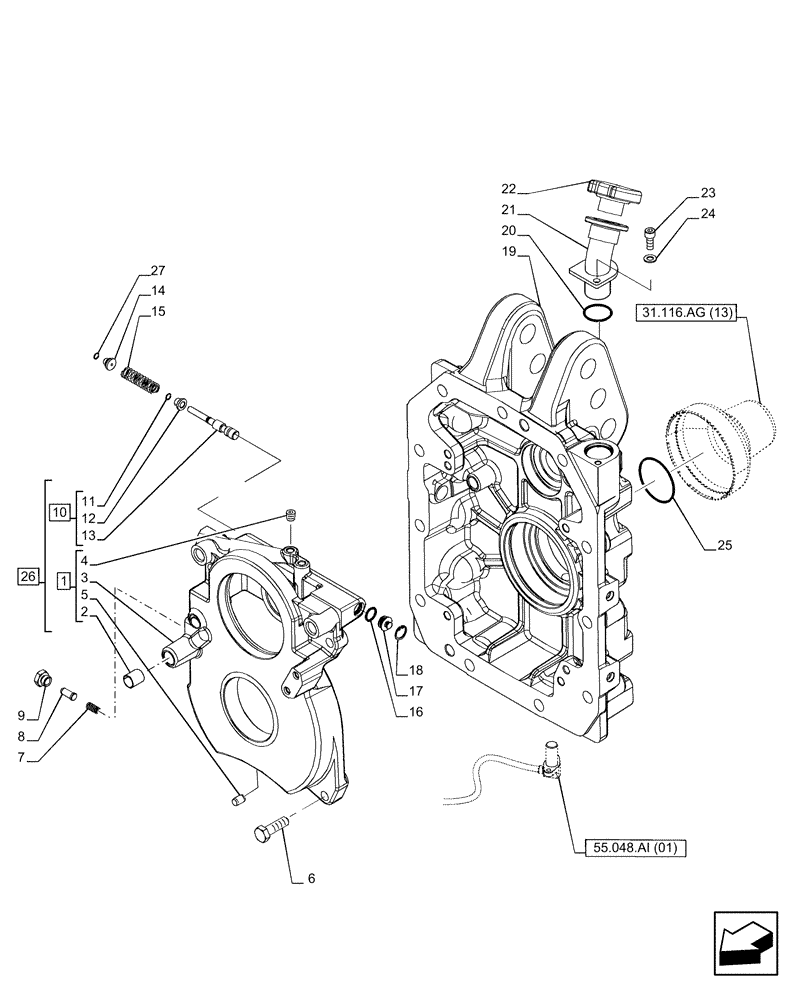

Запчасти Case IH PUMA 150 CVT (31.116.AG[03]) - VAR - 391139, 758023 - PTO 540/540E/1000 RPM, HOUSING (31) - IMPLEMENT POWER TAKE OFF

1

87580869

SUPPORT

ASSY, Incl 2 - 5

1шт.

2

5129030

BUSHING,16.04mm ID x 18mm OD x 20mm L

3шт.

3

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

4

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

3шт.

5

10839710

DOWEL,M10 x 15.00mm

2шт.

6

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

7

5128251

SPRING,Compression, 8.5mm OD x 20mm L

1шт.

8

5193099

PAWL,8.5mm D x 22.5mm L

1шт.

9

5193100

PLUG,Hex, M14 x 1.5

1шт.

10

47128616

VALVE

ASSY, Incl 11 - 13

1шт.

11

13397370

SNAP RING,M8, Int

1шт.

12

84271074

SPACER,8mm ID x 15.6mm OD x 10mm L

1шт.

13

47128521

VALVE

1шт.

14

84544133

PLUG,8mm ID

1шт.

15

84281722

SPRING,Compression, 15mm OD x 80mm L

1шт.

16

14453180

O-RING,12.42mm ID x 1.78mm

1шт.

17

47128597

PLUG,6mm ID x 19mm OD x 13mm L

1шт.

18

11057776

SNAP RING,M19, Int

1шт.

19

84303022

HOUSING

1шт.

20

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

21

47135307

FILLER

1шт.

22

82005372

FILLER CAP,Male, Vented_No Lockable

1шт.

23

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

24

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

25

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

1шт.

26

87673377

COVER

ASSY, Incl 1 - 5, 10 - 13

1шт.

27

13420576

SNAP RING,M16, Int

1шт.
