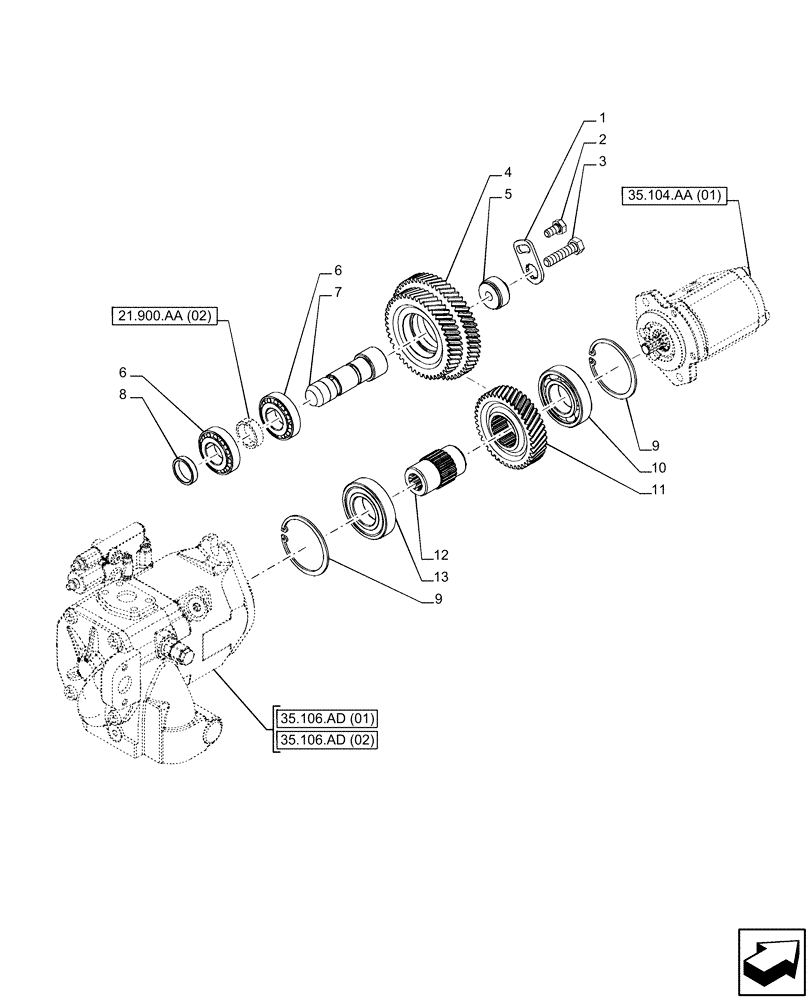

Запчасти Case IH PUMA 150 CVT (21.900.AA[01]) - VAR - 391374, 391161, 758055, 758935, 391374 - HYDRAULIC PUMP, DRIVEN GEAR (21) - TRANSMISSION

1

5196003

ADJUSTING PLATE

1шт.

2

16323321

BOLT,Hex Lock, M10 x 1.25 x 20.00mm, 8R, ZND

1шт.

3

16326621

BOLT,Hex Lock, M12 x 1.25 x 50.00mm, 8R, ZND

1шт.

4

87389628

GEAR,Z46/Z55

Z 46, Z 55

1шт.

5

47129373

RING NUT,M40, 1.50mm Pitch, 26.00mm High

1шт.

6

26799940

TAPERED BEARING,30.00mm ID x 62.00mm OD x 17.25mm

30.00mm ID x 62.00mm OD x 17.25mm

2шт.

7

84124309

SHAFT,120mm L

120mm

1шт.

8

5191844

SPACER,30.4mm ID x 37.3mm OD x 8.3mm L

1шт.

9

300633

SNAP RING,M80, Internal

2шт.

10

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

11

87389629

GEAR,Z41

Z 41

1шт.

12

47130581

SHAFT,75mm L

75mm

1шт.

13

47137885

BALL BEARING,40 mm ID x 80 mm OD x 18 mm

1шт.
