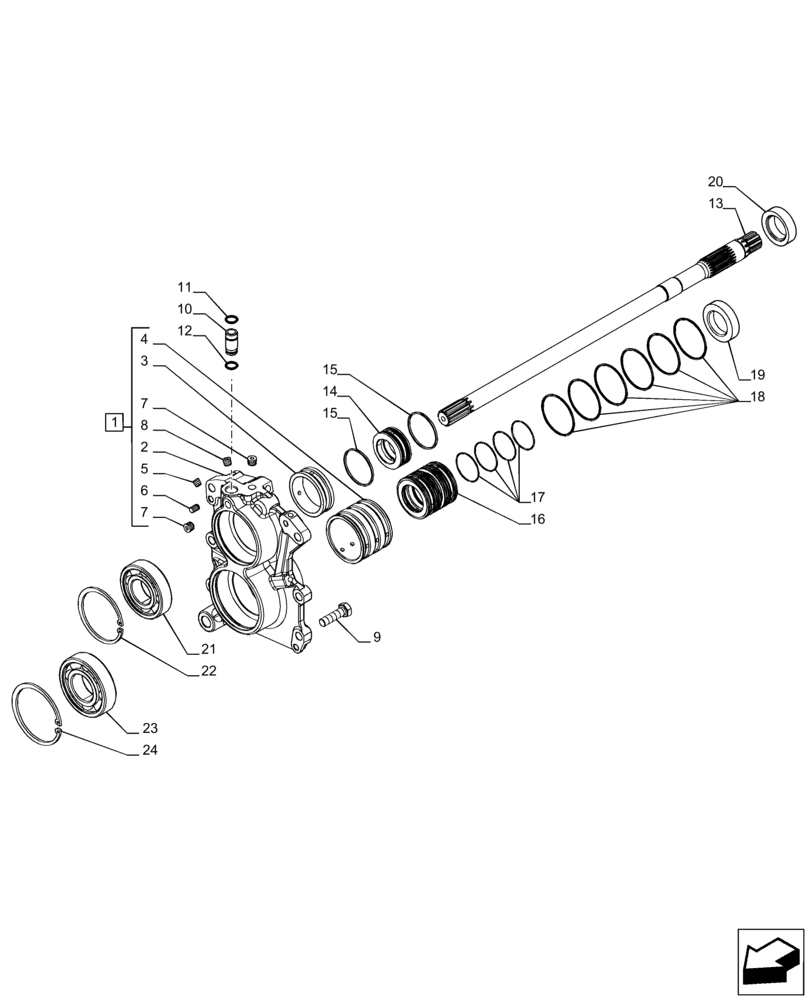

Запчасти Case IH PUMA 150 CVT (21.507.AD[06]) - VAR - 391138, 758022 - TRANSMISSION, COVER, PTO SHAFT, CVT (21) - TRANSMISSION

1

47606775

COVER ASSY

ASSY, Incl 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

3

87575184

BUSHING,67.5mm ID x 81mm OD x 28.5mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

1шт.

5

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

3шт.

6

10839710

DOWEL,M10 x 15.00mm

2шт.

7

10269504

PLUG,M14 x 1.5

M14 x 1,5 x 11

3шт.

8

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

1шт.

9

15860124

BOLT,Hex, M14 x 1.5 x 50mm, Cl 8.8

6шт.

10

84151087

TUBE

1шт.

11

14453480

O-RING,17.17mm ID x 1.78mm

1шт.

12

14453380

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

13

84393643

SHAFT,10T, 22T, 11T, 743mm L

PTO

1шт.

14

87363199

MANIFOLD

1шт.

15

87588681

SEALING RING,63.81mm ID x 67.81mm OD x 2.87mm Thk

2шт.

16

84356313

MANIFOLD

1шт.

17

14455080

O-RING,50.52mm ID x 1.78mm

4шт.

18

83911795

SEAL,Split, 70.76mm ID x 76.2mm OD x 2.13mm Thk

6шт.

19

87574919

NUT,Hex, M45 x 1.5, 13 Thd

1шт.

20

5147930

RING NUT,M45 x 1.5

1шт.

21

87588882

BALL BEARING,40mm ID x 100mm OD x 25mm

45 x 100 x 25

1шт.

22

11062976

SNAP RING,Int, M100 x 3

1шт.

23

20229990

BALL BEARING,50mm ID x 110mm OD x 27mm W

1шт.

24

11075476

SNAP RING,M110, Int

1шт.
