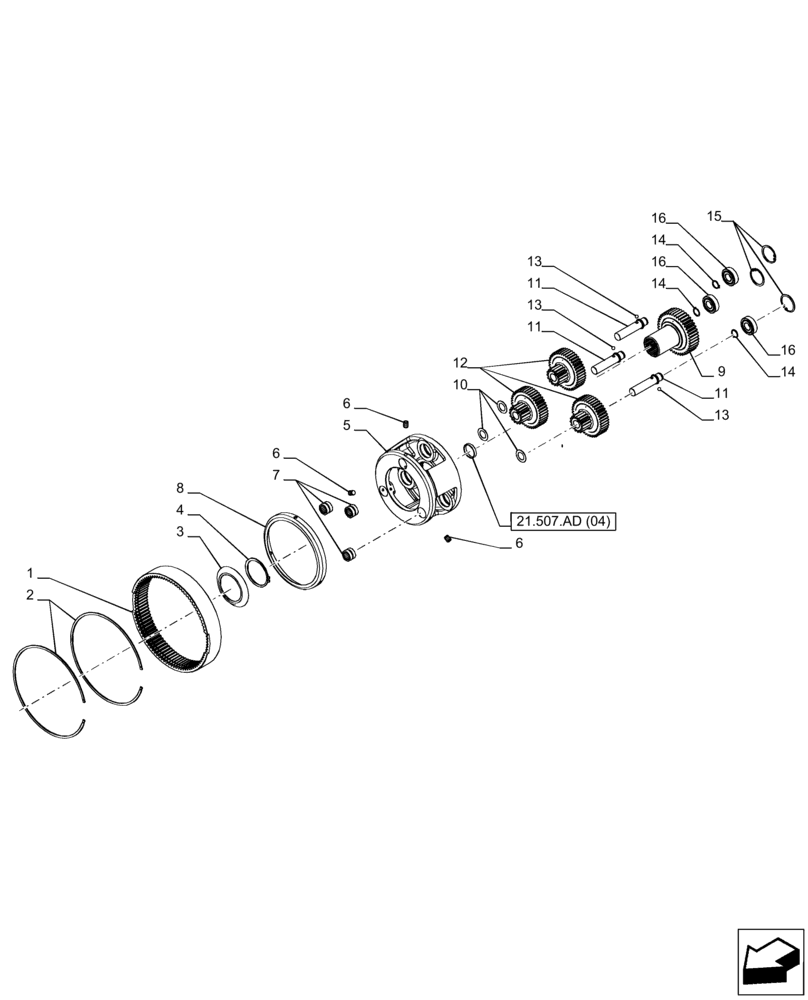

Запчасти Case IH PUMA 150 CVT (21.507.AD[03]) - VAR - 391138, 758022 - TRANSMISSION, PLANETARY REDUCER, CVT (21) - TRANSMISSION

1

87362998

RING GEAR,93T, 48mm L

1шт.

2

87589111

LOCKING RING,2.5mm Thk

2шт.

3

87363204

SPECIAL WASHER,75mm ID x 114mm OD x 1.5mm Thk

1шт.

4

11070576

SNAP RING,M75, Ext

1шт.

5

84338331

PINION CARRIER

1шт.

6

84192268

DOWEL,8mm OD x 10mm L

3шт.

7

87484971

ROLLER BEARING,21.00mm x 29.00mm x 20.00mm

3шт.

8

84338316

STOP LOCK

1шт.

9

84385054

SUN GEAR

1шт.

10

84203723

SHIM,21mm ID x 35mm OD x 1.0mm Thk

3шт.

11

84356957

PIN,21mm OD x 81.5mm L

3шт.

12

87471832

IDLER PINION,36T, 29mm L

3шт.

13

83416928

BALL,1/4 OD

3шт.

14

11066871

CIRCLIP,M20

3шт.

15

11060276

SNAP RING,M47, Int

3шт.

16

87484972

ROLLER BEARING,20.00mm x 47.00mm x 17.00mm

3шт.
