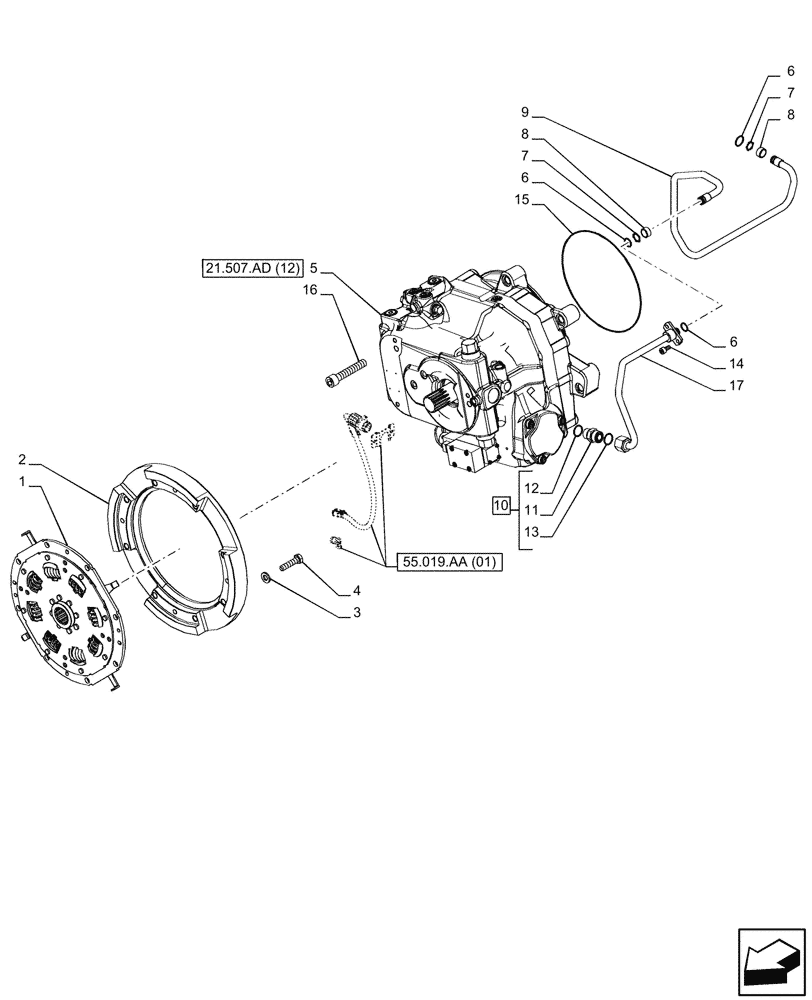

Запчасти Case IH PUMA 150 CVT (21.507.AD[01]) - VAR - 391138, 758022 - TRANSMISSION, HYDROSTATIC PUMP, CVT (21) - TRANSMISSION

1

87542609

DAMPER,348mm OD

1шт.

1

87542609R

REMAN-CLUTCH PLATE

1шт.

1

87542609C

CORE-CLUTCH PLATE

Return Number

1шт.

2

47133829

DISC,395mm OD

1шт.

3

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

8шт.

4

15540829

BOLT,Hex, M12 x 1.25 x 50mm, Cl 8.8

8шт.

5

84356582

TRANSMISSION, HYDROS

ASSY

1шт.

6

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

3шт.

7

84304518

SNAP RING,1mm Thk

2шт.

8

87630110

BUSHING,17mm ID x 21mm OD x 10.7mm L

2шт.

9

84304517

PRESSURE PIPE

1шт.

10

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

ASSY, Incl 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

1шт.

12

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

13

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

87331111

HEX SOC SCREW,M8 x 16mm, Cl 8.8

2шт.

15

14468980

GASKET,0.139" Thk x 9.234" ID, -271, Cl 5, 75 Duro

1шт.

16

14314721

SCREW,M16 x 1.5 x 90mm

M16 x 1.5 x 90mm

4шт.

17

84359808

TUBE

1шт.
