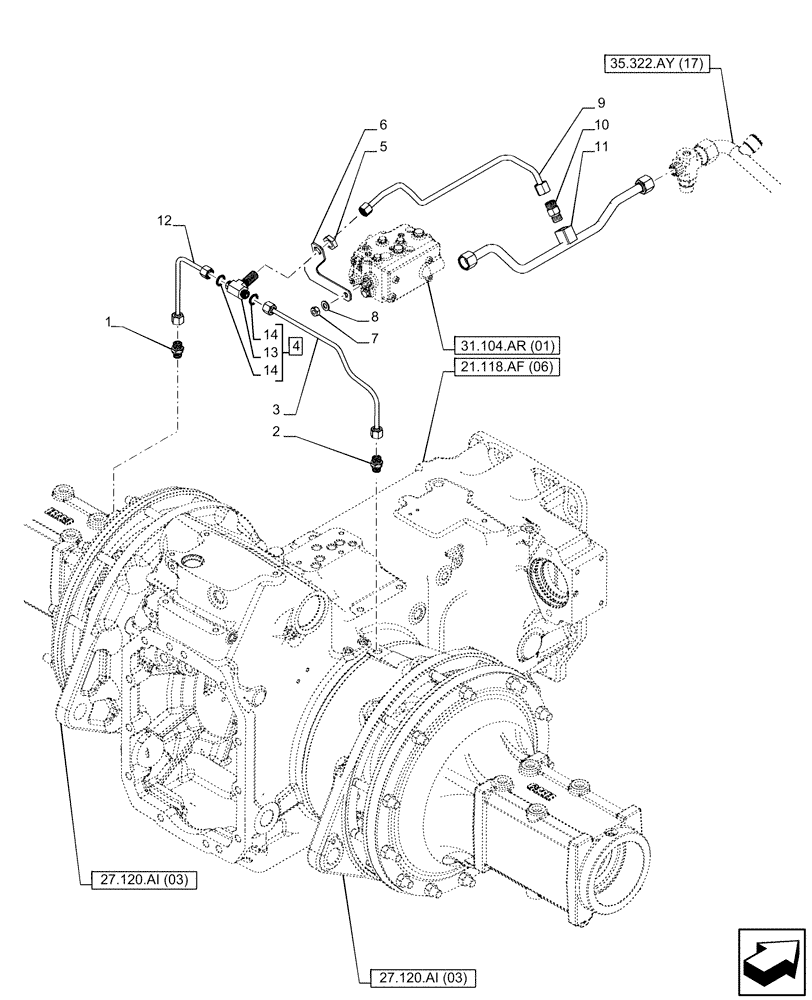

Запчасти Case IH PUMA 150 CVT (21.506.BE) - VAR - 391138, 758022 - TRANSMISSION, LUBRICATION LINE (21) - TRANSMISSION

1

84248614

HYD CONNECTOR,M10 x 1.25

1шт.

2

84248616

HYD CONNECTOR,M10 x 1.25

1шт.

3

84328628

TUBE

Pressure, Lube Brake

1шт.

4

87306678

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 ORFS

ASSY, Incl 13, 14 (Qty 2)

1шт.

5

87010704

BHD LOCK NUT,11/16"-16

1шт.

6

84340705

BRACKET

1шт.

7

12164711

NUT,M10 x 1.25, Cl 8

1шт.

8

11198579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.9mm Thk

1шт.

9

84141707

TUBE

Lube Brake

1шт.

10

84140206

CHECK VALVE

1шт.

11

47437279

TUBE

1шт.

12

84141709

TUBE

LH, Lube Brake

1шт.

13

NSS

NOT SOLD SEPARAT

Tee, Incl in 4

1шт.

14

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.
