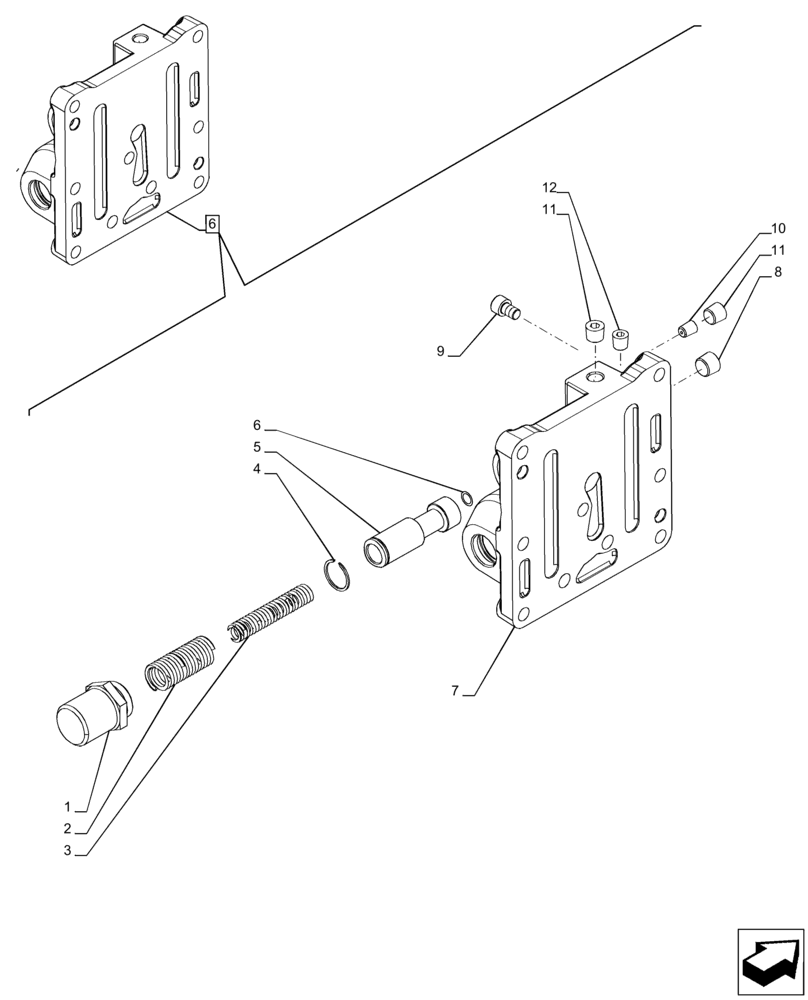

Запчасти Case IH PUMA 150 CVT (21.505.AQ[03]) - VAR - 391138, 758022 - TRANSMISSION CONTROL VALVE, COMPONENTS (21) - TRANSMISSION

1

5121313

PLUG,36mm OD

1шт.

2

5114391

SPRING,14mm OD x 100mm L

1шт.

3

5114392

SPRING,21.5mm OD x 84.5mm L

1шт.

4

5114438

SNAP RING,1.2mm Thk, Ext

1шт.

5

NSS

NOT SOLD SEPARAT

Spool, Incl in 6

1шт.

6

87719634

DISTRIBUTOR

ASSY, Incl 1 - 5, 7 - 12

1шт.

7

NSS

NOT SOLD SEPARAT

Body, Incl in 6

1шт.

8

10269504

PLUG,M14 x 1.5

1шт.

9

14306120

HEX SOC SCREW,M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

10

87634955

ORIFICE,M8 x 1.25 x 2mm ID x 11mm L

1шт.

11

10269401

PLUG,Taper Thd, Hex Skt, M12 x 1.5 x 11mm, 4.8

2шт.

12

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

1шт.
