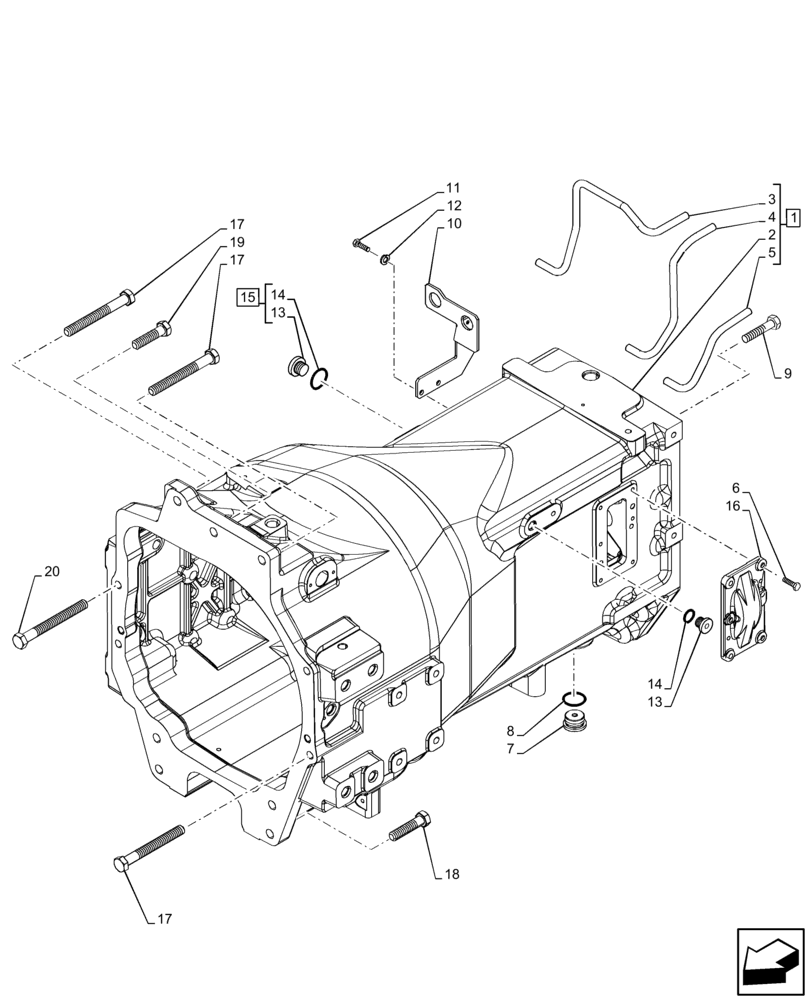

Запчасти Case IH PUMA 150 CVT (21.120.AB[05]) - VAR - 337427, 337433, 391138, 758022, 759053 - GEARBOX, CVT (21) - TRANSMISSION

1

47434193

HOUSING

ASSY, Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

3

87615432

HYD TUBE

1шт.

4

87614799

PRESSURE PIPE

1шт.

5

87614792

PRESSURE PIPE

Delivery Clutch

1шт.

6

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

7

87687750

MAGNETIC PLUG,Hex, M33 X 2 X 16mm

1шт.

8

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

9

11422034

BOLT,Hex, M15 x 55mm, Class 10.9

14шт.

10

47460856

SUPPORT

1шт.

11

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

12

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

13

NSS

NOT SOLD SEPARAT

Plug, Incl in 15

1шт.

14

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

15

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

ASSY, Incl 13, 14

3шт.

16

87362933

COVER

1шт.

17

15982134

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

4шт.

18

15835234

BOLT,Hex, M16 x 1.5 x 70mm, Cl 10.9

4шт.

19

15981234

BOLT,Hex, M16 x 1.5 x 65mm, Cl 10.9

1шт.

20

15982334

BOLT,Hex, M16 x 1.5 x 150mm, Cl 10.9

2шт.
